Sunroof / Moonroof: Service and Repair

Moonroof Glass Replacement

1. Tilt the glass all the way up.

2. Slide the sunshade all the way back.

3. Turn the slit portions of the molding (A) up and remove the TORX screws from the glass brackets (B) on both sides with a TORX T25 bit.

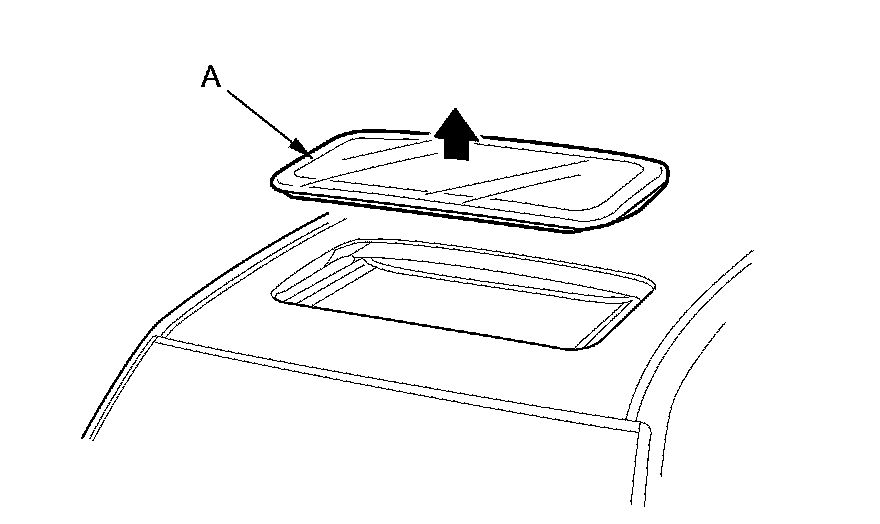

4. Remove the glass (A) by lifting it up. Do not damage the roof panel.





5. Install the glass in the reverse order of removal, and note these items:

- Apply medium strength liquid thread lock to the glass mounting bolts before reinstallation.
- Do the glass position adjustment Adjustments.
- Reset the moonroof control unit Programming and Relearning.

6. Check for water leaks. Let the water run freely from a hose without a nozzle. Do not use a high-pressure spray.

NOTE: It is normal for some water to seep past the moonroof into the moonroof frame, and exit through the drains.
