Driver's Power Seat Motor Test (With DPMS)

Driver's Power Seat Motor Test

NOTE: SRS components are located in this area. Review the SRS component locations Locations, and precautions and procedures Service and Repair before doing repairs or servicing.

1. Remove the driver's seat Front Seat Removal/Installation (USA/Canada).

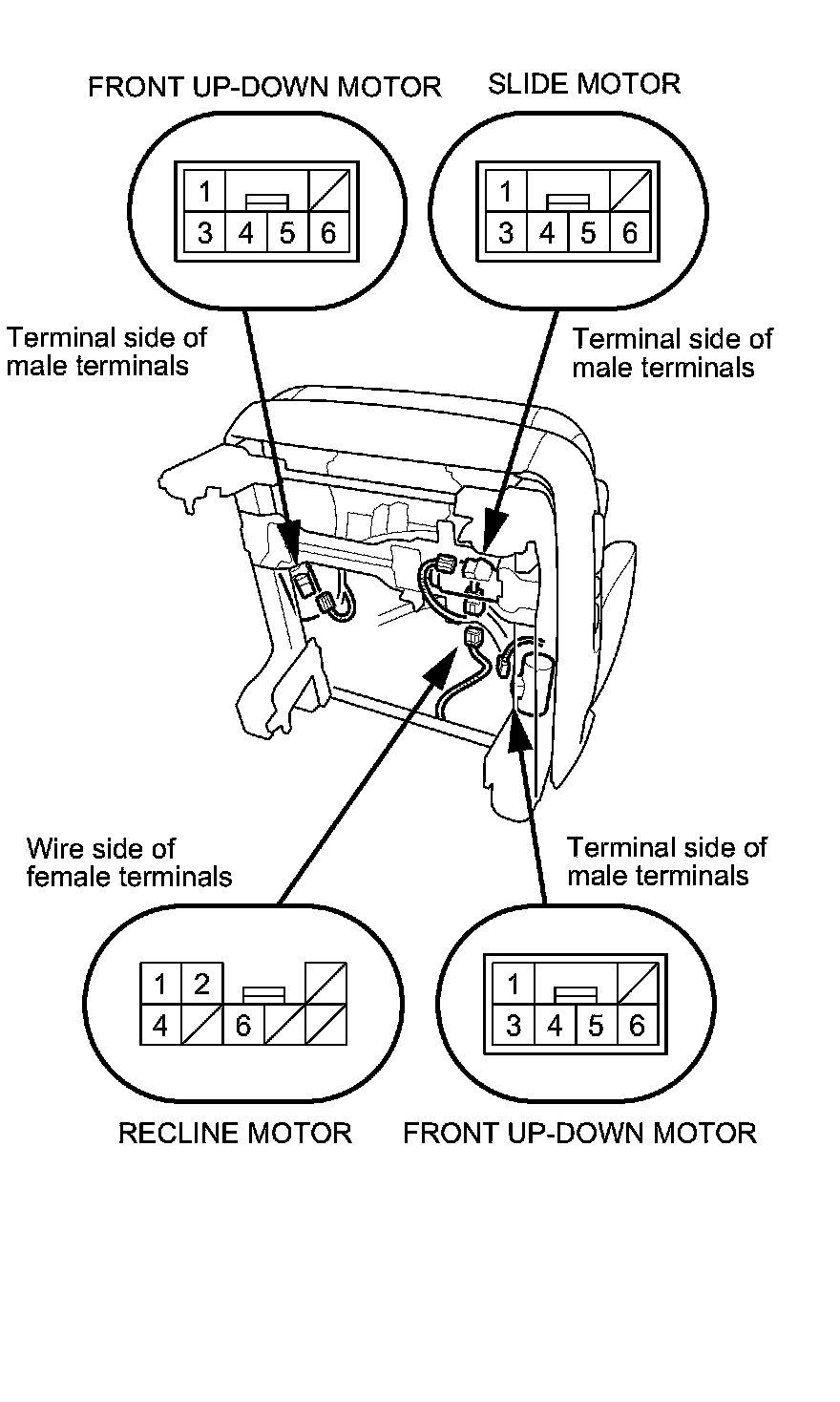

2. Disconnect the 6P and 8P connectors from each power seat motor.

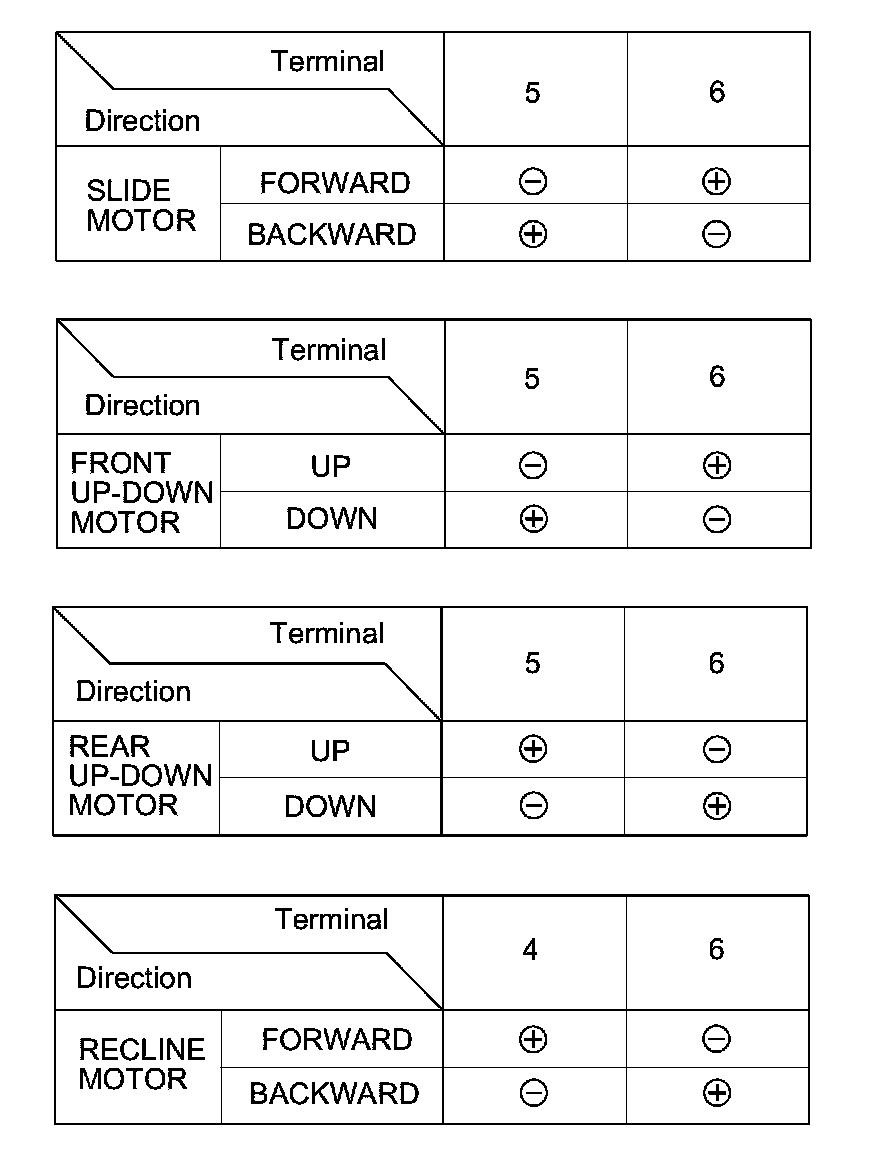

3. Test each motor by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.






4. If the motor does not run or fails to run smoothly, replace the appropriate motor.

- Slide motor Front Seat Slide Motor Replacement
- Front up-down motor Front Seat Frame Replacement
- Rear up-down motor Front Seat Frame Replacement
- Recline motor Front Seat Recline Motor Replacement

NOTE: The front and rear up-down motors are part of the seat frame.
