Front Seat Under Tray Replacement

Front Seat Under Tray Replacement

For some models

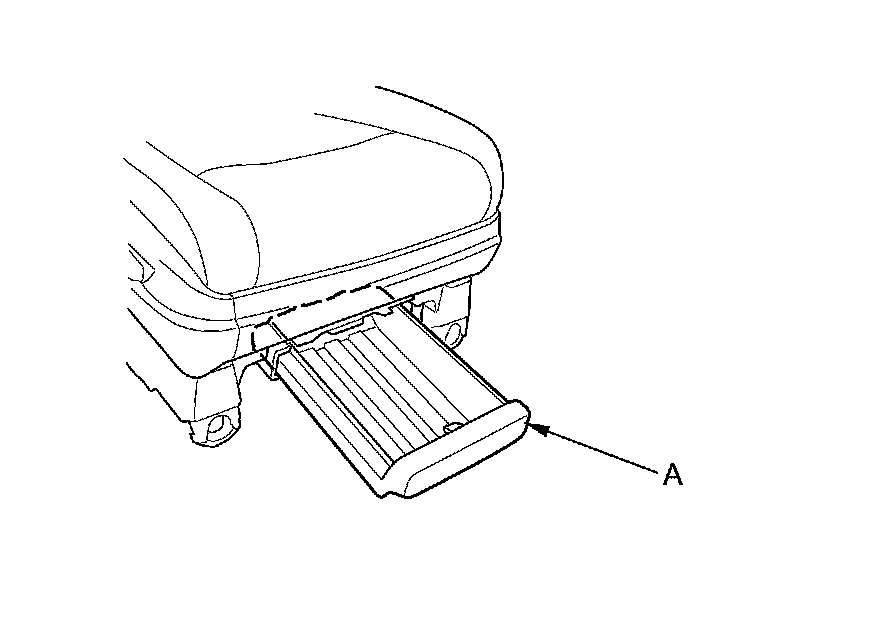

1. Open the under tray (A).





2. Gently twist the under tray while pulling it out until one side comes off of the guide rail.

3. Tilt the removed side of under tray down, then pull the other side off the guide rail.

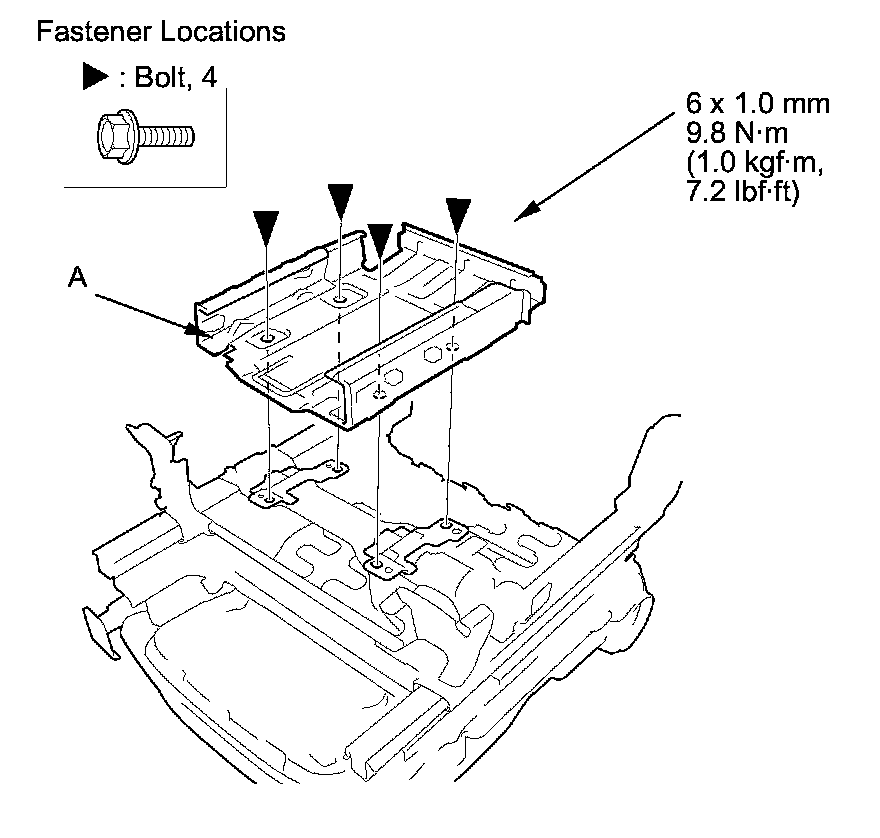

4. Remove the seat under tray slide plate (A).

1. Remove the passenger's seat Front Seat Removal/Installation (USA/Canada).

2. Remove the bolts.
