Spare Tire Support Bracket Replacement

Spare Tire Support Bracket Replacement

1. Remove these items:

- Spare tire hoist Spare Tire Hoist Replacement
- Spare tire spacer Spare Tire Spacer Replacement

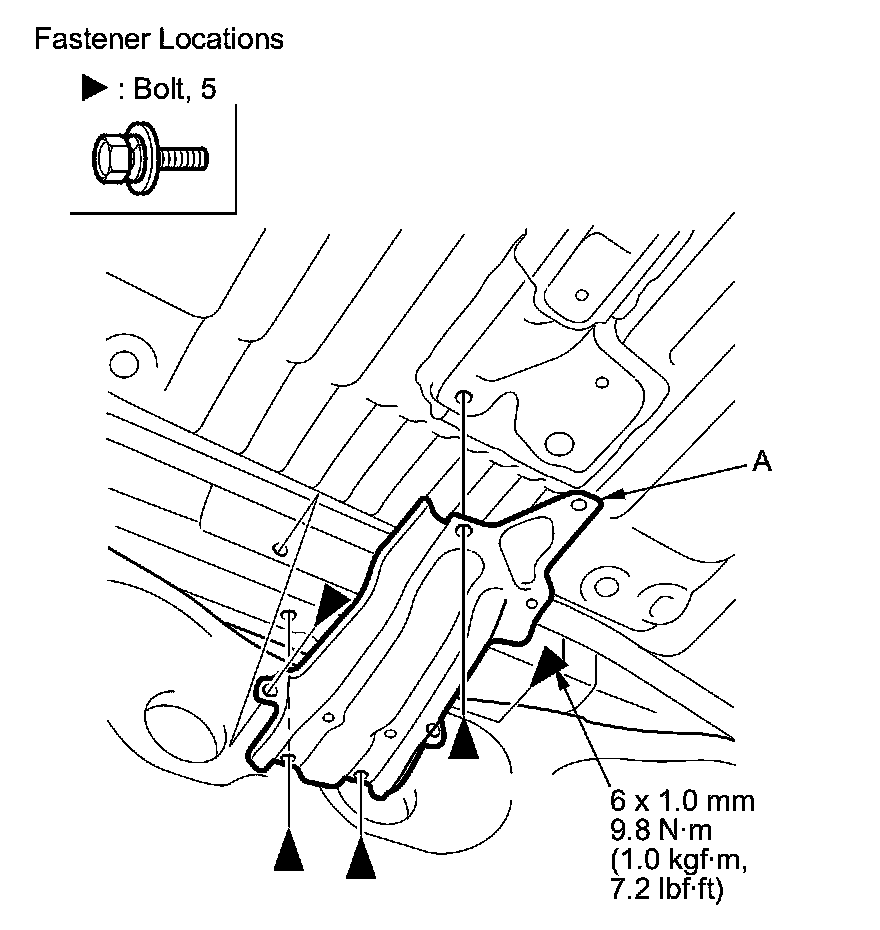

2. Remove the bolts, then remove the spare tire support bracket (A).






3. Install the spare tire support bracket in the reverse order of removal.
