Traction Control Switch: Testing and Inspection

VSA Off Switch Test/Replacement

NOTE: If the low tire pressure indicator turns ON, the VSA cannot be turned OFF. Check the tire pressure first.

1. Turn the ignition switch to LOCK (0).

2. Remove the driver's dashboard side lid Driver's Dashboard Lower Cover Removal/Installation.

3. Remove the driver's dashboard lower cover Driver's Dashboard Lower Cover Removal/Installation.

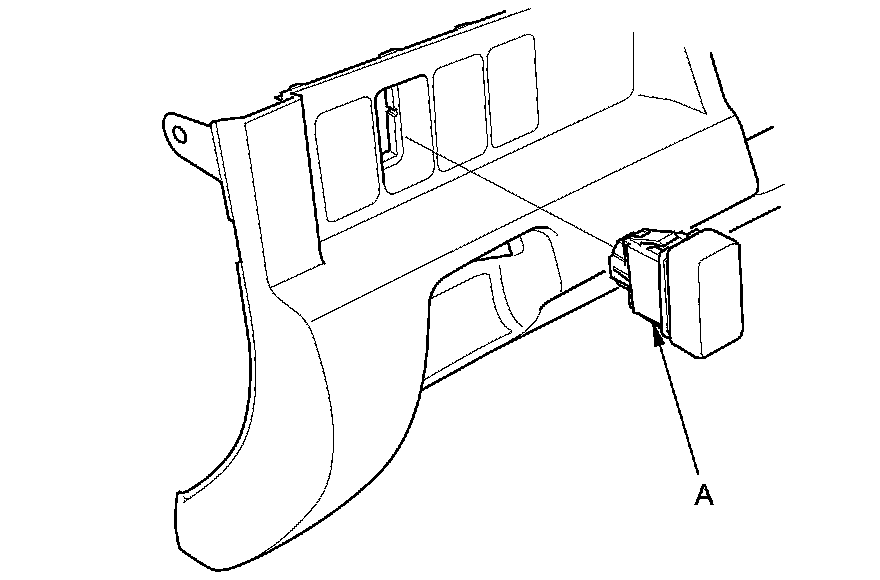

4. Push out the VSA OFF switch (A) from the driver's dashboard lower cover.

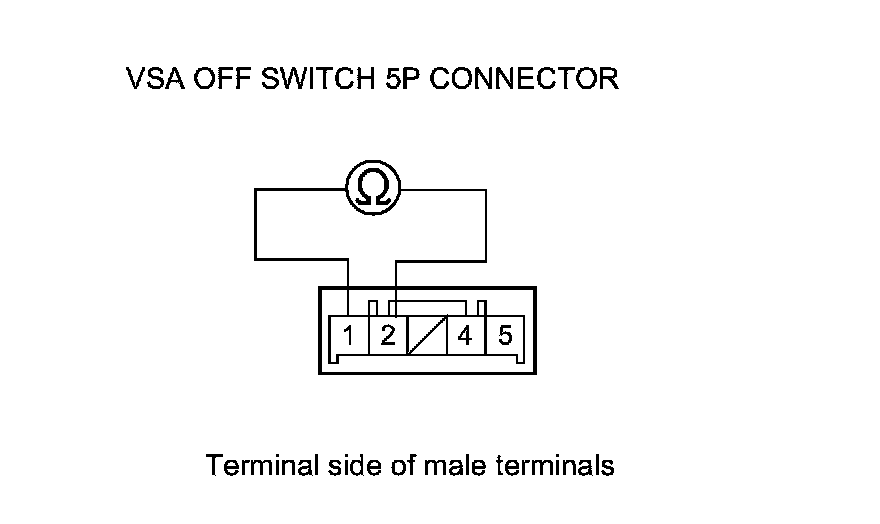

5. Check for continuity between VSA OFF switch 5P connector terminals No. 1 and No. 2. There should be continuity when the switch is pressed, and no continuity when the switch is released.

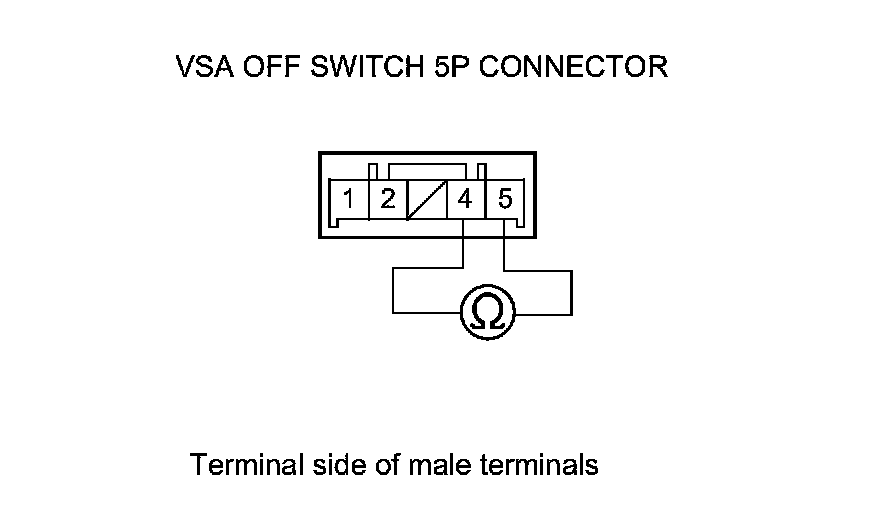

6. Check for continuity between VSA OFF switch 5P connector terminals No. 4 and No. 5. There should be continuity at all times.






7. Install the VSA OFF switch in the reverse order of removal.
