Auxiliary Input / Output Jack, Entertainment System
>>

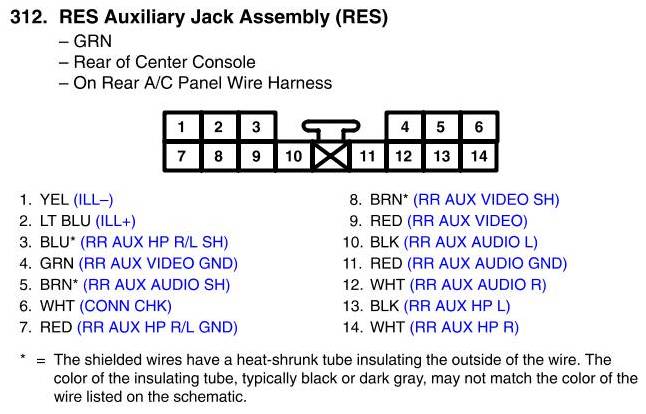

RES Auxiliary Jack Assembly Connector View (RES)
RES Auxiliary Jack Assembly Connector View (RES)
