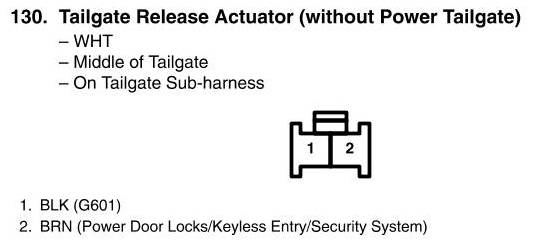

View 130 - Tailgate Release Actuator Connector View (Without Power Tailgate)
View 130 - Tailgate Release Actuator Connector View (Without Power Tailgate)
