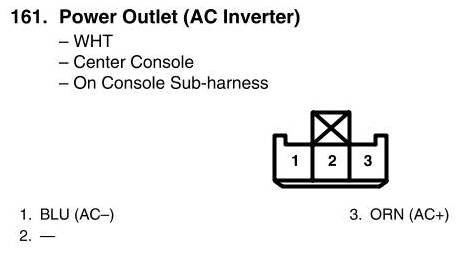

View 161 - Power Outlet Connector View (AC Inverter)
View 161 - Power Outlet Connector View (AC Inverter)
