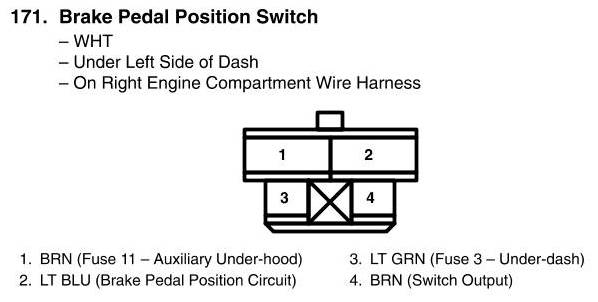

View 171 - Brake Pedal Position Switch Connector View
View 171 - Brake Pedal Position Switch Connector View
