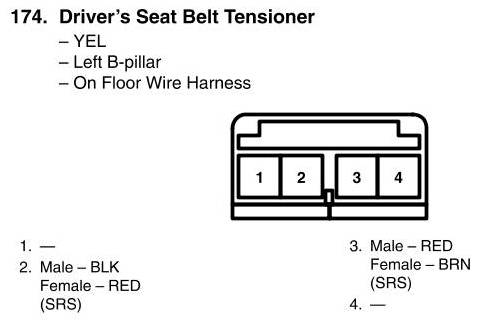

View 174 - Driver's Seat Belt Tensioner Connector View
View 174 - Driver's Seat Belt Tensioner Connector View
