Diesel Data
: Automotive Repair
Home
>>
Honda Truck
>>
2010
>>
Pilot 4WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

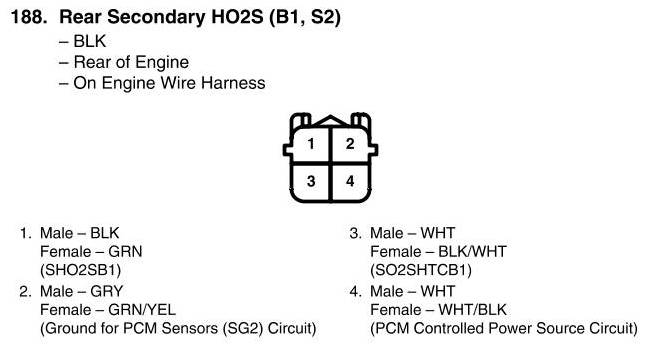

View 188 - Rear Secondary HO2S (B1, S2) Connector View
View 188 - Rear Secondary HO2S (B1, S2) Connector View
