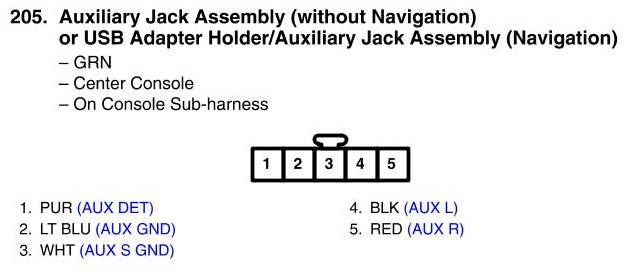

View 205 - Auxiliary Jack Assembly Or USB Adapter Holder/Auxiliary Jack Assembly Connector View
View 205 - Auxiliary Jack Assembly Or USB Adapter Holder/Auxiliary Jack Assembly Connector View
