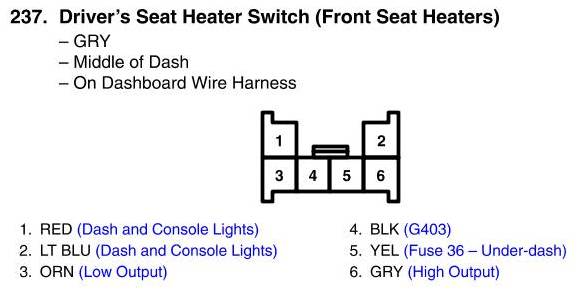

View 237 - Driver's Seat Heater Switch Connector View (Front Seat Heaters)
View 237 - Driver's Seat Heater Switch Connector View (Front Seat Heaters)
