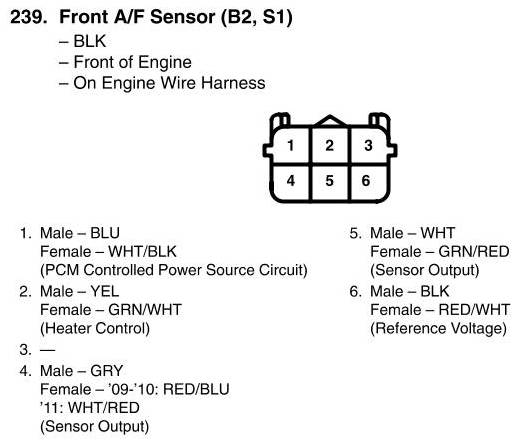

View 239 - Front A/F Sensor (B2, S1) Connector View
View 239 - Front A/F Sensor (B2, S1) Connector View
