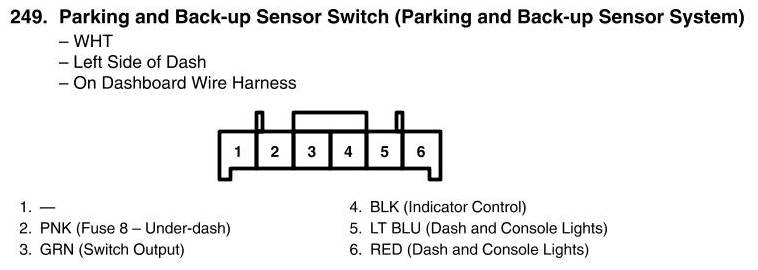

View 249 - Parking And Back-up Sensor Switch Connector View (Parking And Back-up Sensor System)
View 249 - Parking And Back-up Sensor Switch Connector View (Parking And Back-up Sensor System)
