Diesel Data
: Automotive Repair
Home
>>
Honda Truck
>>
2010
>>
Pilot 4WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

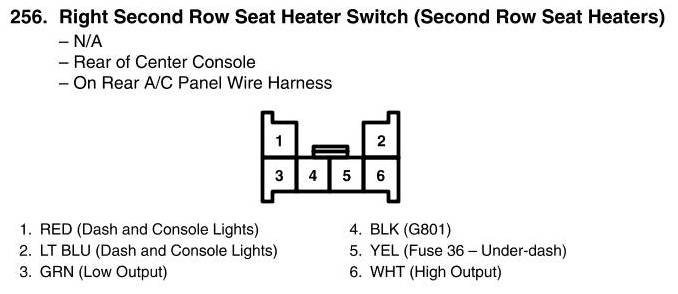

View 256 - Right Second Row Seat Heater Switch Connector View
View 256 - Right Second Row Seat Heater Switch Connector View
