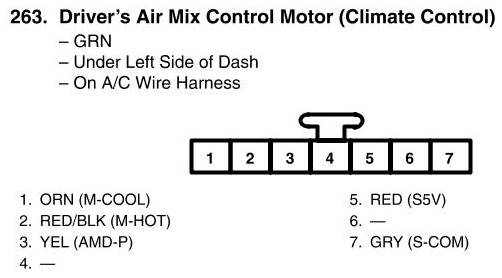

View 263 - Driver's Air Mix Control Motor Connector View (Climate Control)
View 263 - Driver's Air Mix Control Motor Connector View (Climate Control)
