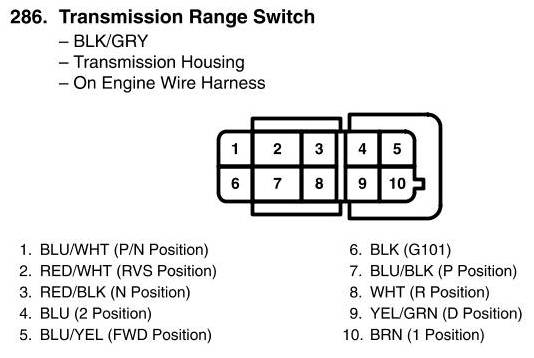

View 286 - Transmission Range Switch Connector View
View 286 - Transmission Range Switch Connector View
