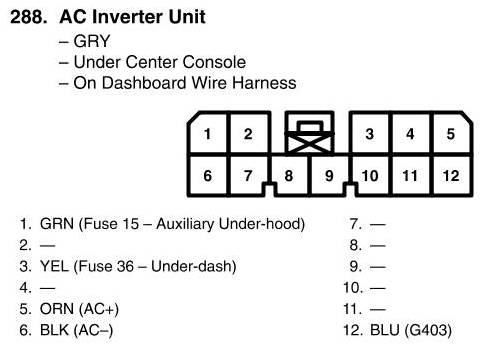

View 288 - AC Inverter Unit Connector View (AC Inverter)
View 288 - AC Inverter Unit Connector View (AC Inverter)
