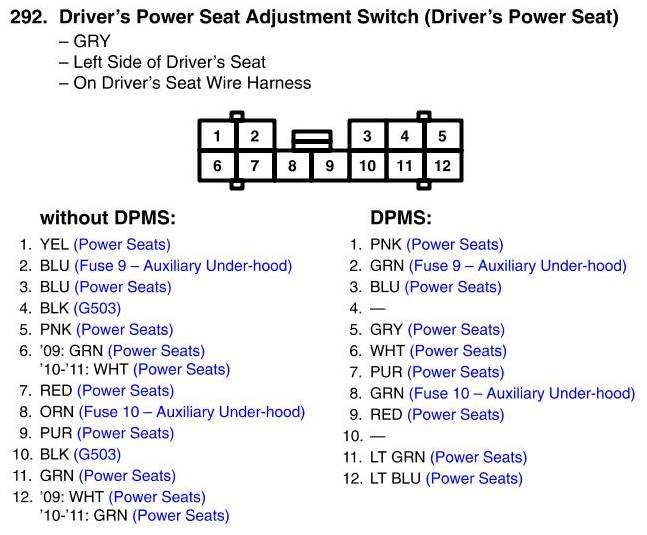

View 292 - Driver's Power Seat Adjustment Switch Connector View (Driver's Power Seat)
View 292 - Driver's Power Seat Adjustment Switch Connector View (Driver's Power Seat)
