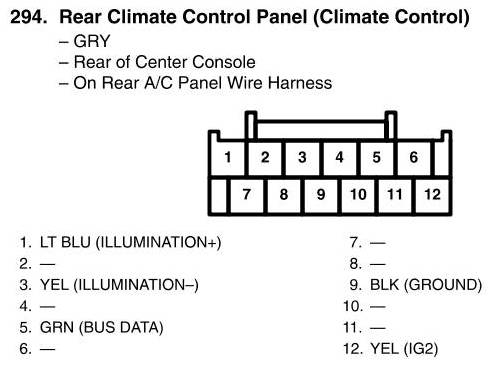

View 294 - Rear Climate Control Panel Connector View (Climate Control)
View 294 - Rear Climate Control Panel Connector View (Climate Control)
