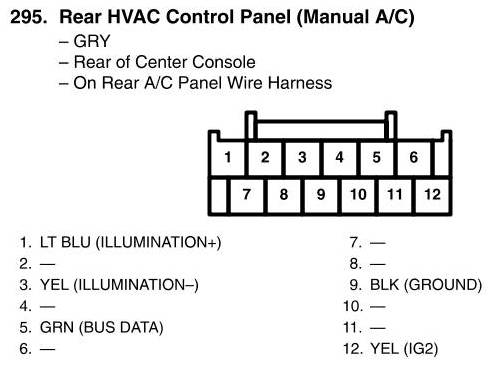

View 295 - Rear HVAC Control Panel Connector View (Manual A/C)
View 295 - Rear HVAC Control Panel Connector View (Manual A/C)
