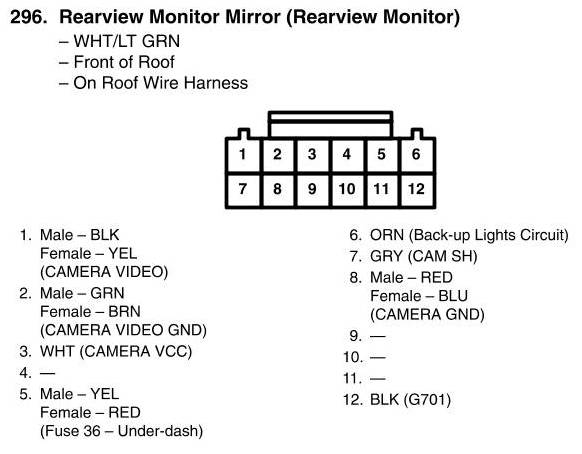

View 296 - Rearview Monitor Mirror Connector View (Rearview Monitor)
View 296 - Rearview Monitor Mirror Connector View (Rearview Monitor)
