Diesel Data
: Automotive Repair
Home
>>
Honda Truck
>>
2010
>>
Pilot 4WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

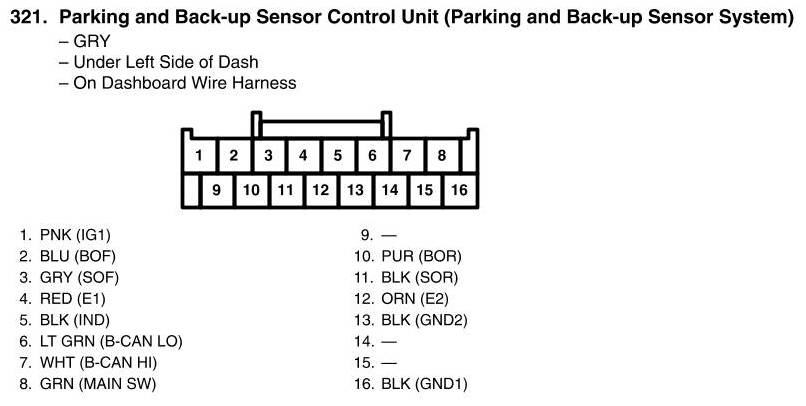

View 321 - Parking And Back-up Sensor Control Unit Connector View (Parking And Back-up Sensor System)
View 321 - Parking And Back-up Sensor Control Unit Connector View (Parking And Back-up Sensor System)
