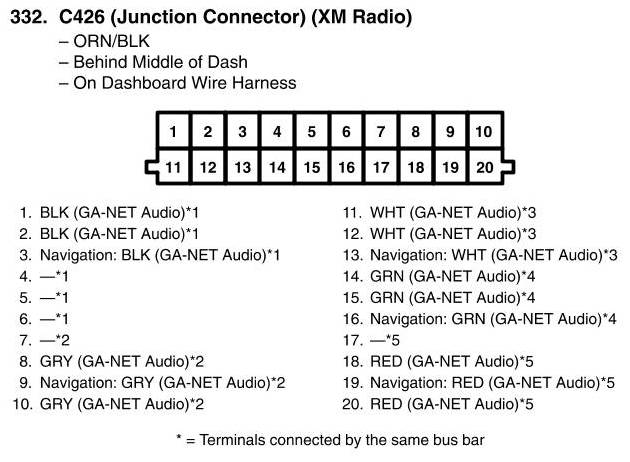

View 332 - C426 (Junction Connector) Connector View (XM Radio)
View 332 - C426 (Junction Connector) Connector View (XM Radio)
