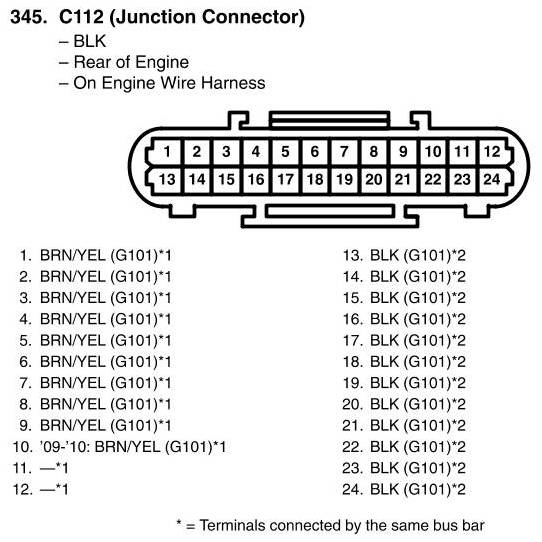

View 345 - C112 (Junction Connector) Connector View
View 345 - C112 (Junction Connector) Connector View
