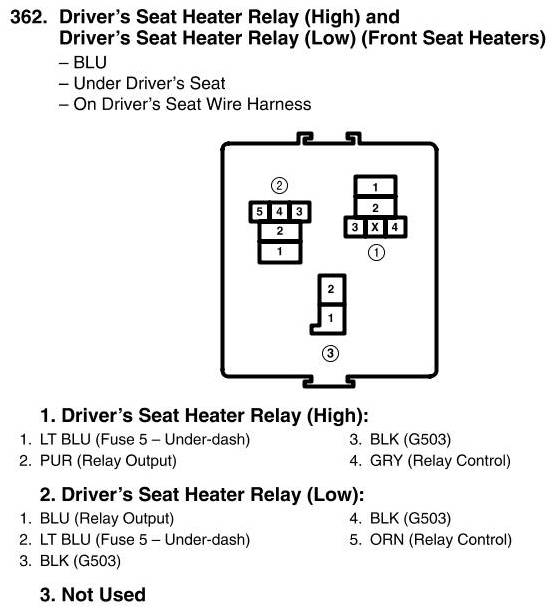

View 362 - Driver's Seat Heater Relay (High) And Driver's Seat Heater Relay (Low) Connector View (Front Seat Heaters)
View 362 - Driver's Seat Heater Relay (High) And Driver's Seat Heater Relay (Low) Connector View (Front Seat Heaters)
