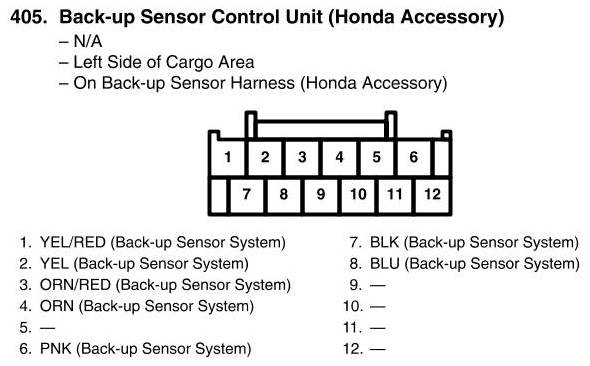

View 405 - Back-up Sensor Control Unit Connector View (Honda Accessory)
View 405 - Back-up Sensor Control Unit Connector View (Honda Accessory)
