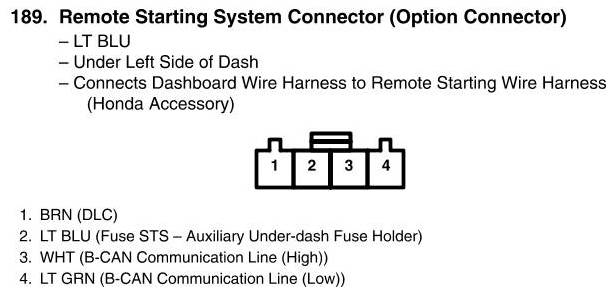

Remote Starting System Connector View (Option Connector)
Remote Starting System Connector View (Option Connector)
