Power Distribution Relay
>>

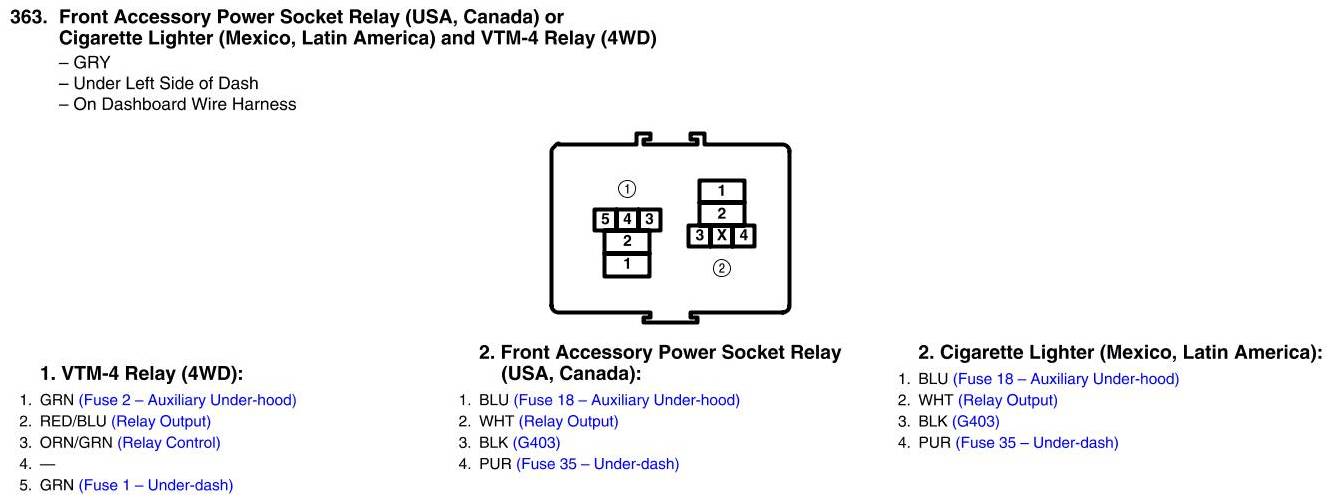

Front Accessory Power Socket Relay (USA, Canada) or Cigarette Lighter and VTM-4 Relay (4WD) Connector View
Front Accessory Power Socket Relay (USA, Canada) or Cigarette Lighter and VTM-4 Relay (4WD) Connector View
