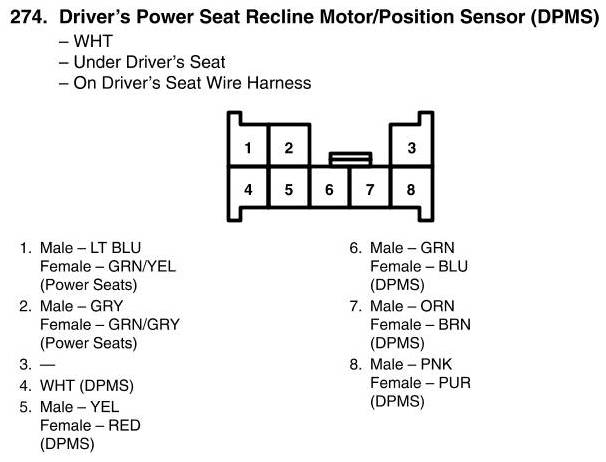

Driver's Power Seat Recline Motor/Position Sensor Connector View (DPMS)
Driver's Power Seat Recline Motor/Position Sensor Connector View (DPMS)
