Power Seat Motor
>>

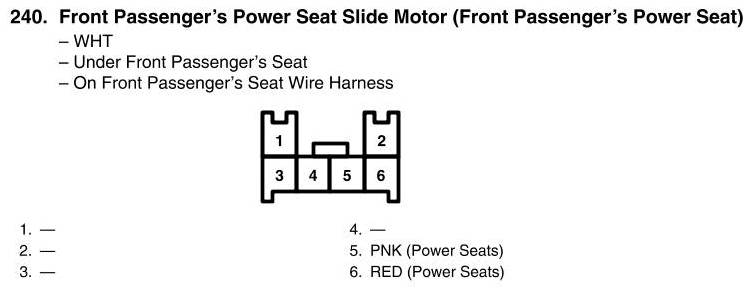

Front Passenger's Power Seat Slide Motor Connector View (Front Passenger's Power Seat)
Front Passenger's Power Seat Slide Motor Connector View (Front Passenger's Power Seat)
