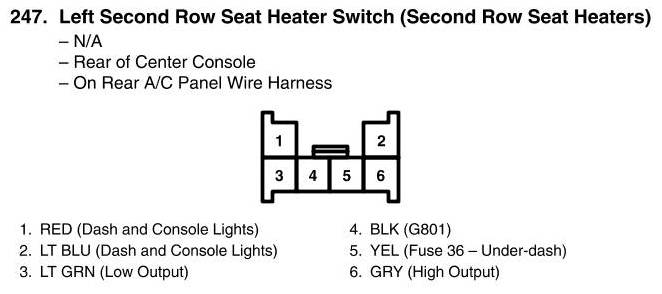

Left Second Row Seat Heater Switch Connector View (Second Row Seat Heaters)
Left Second Row Seat Heater Switch Connector View (Second Row Seat Heaters)
