Driver's Door Wire Harness




Connector and Harness Locations

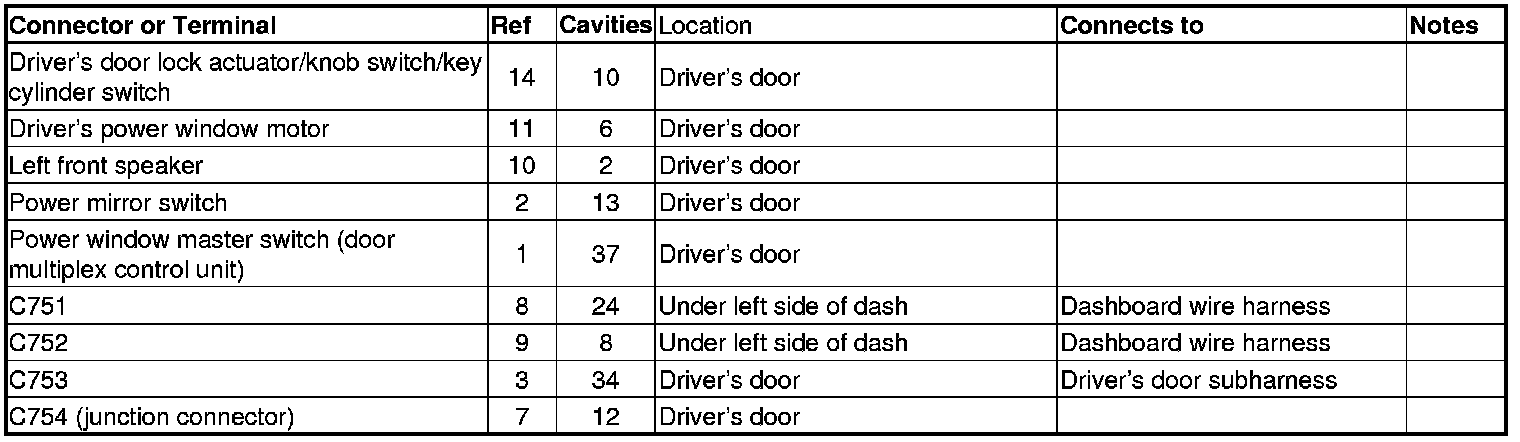

Driver's Door Wire Harness (With DPMS)

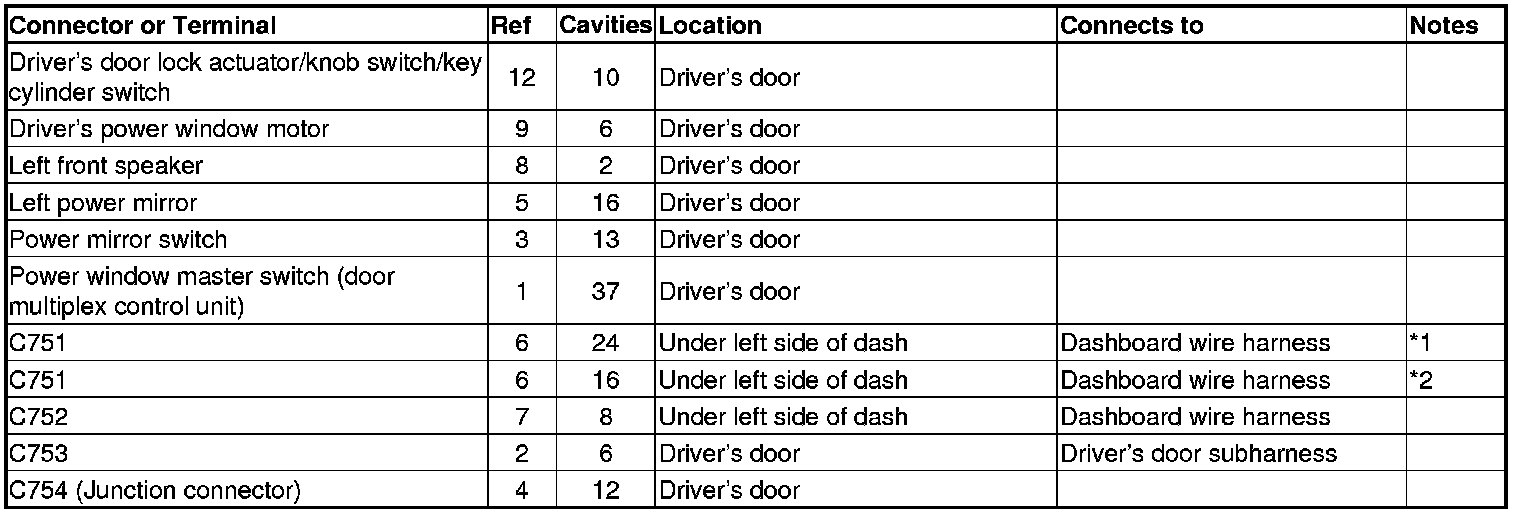

Driver's Door Wire Harness (Without DPMS)
