Home
>>
Honda Truck
>>
2010
>>
Pilot 4WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Connector And Harness Locations
>>
Wire Harness
>>
Roof Wire Harness

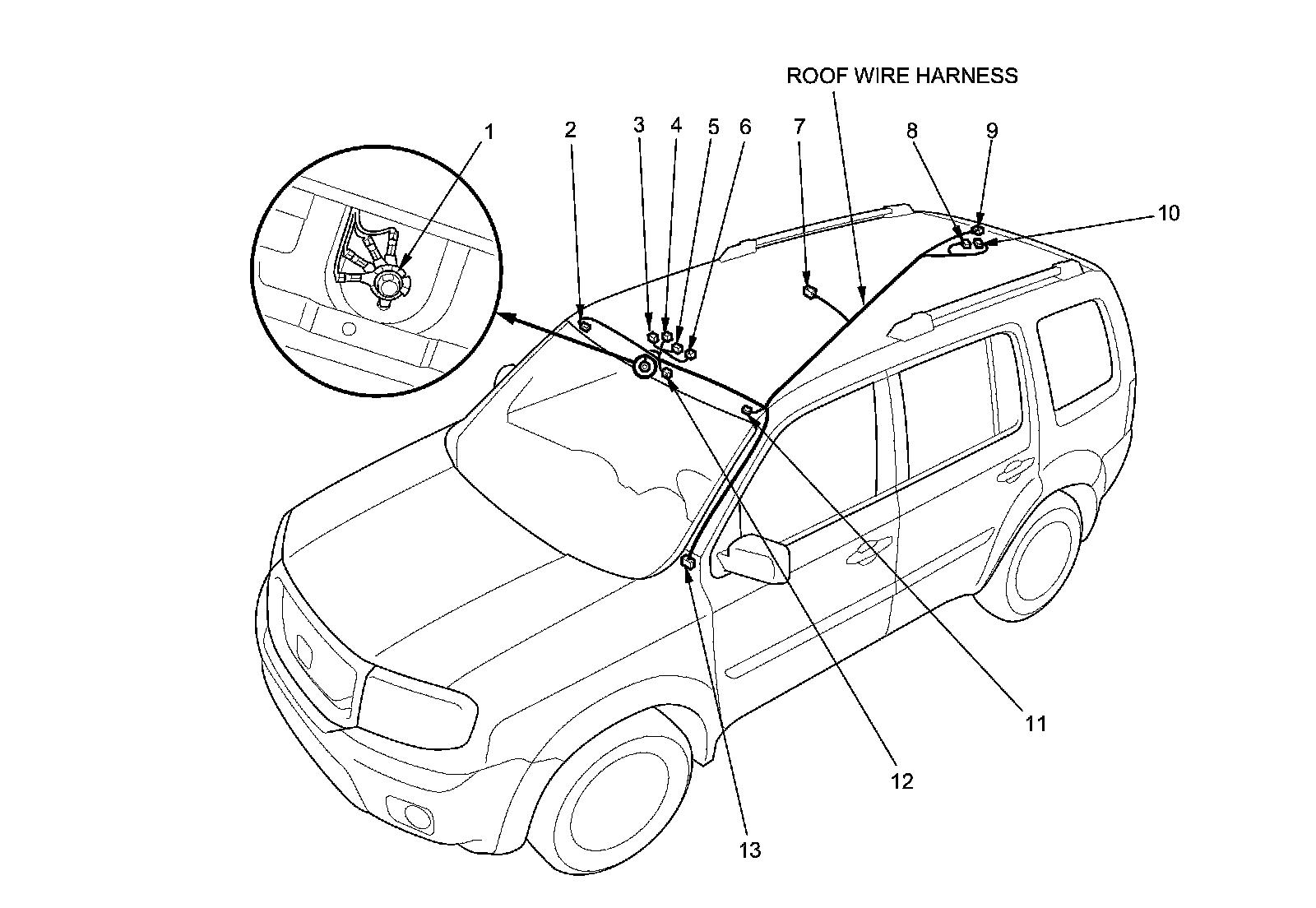

Roof Wire Harness

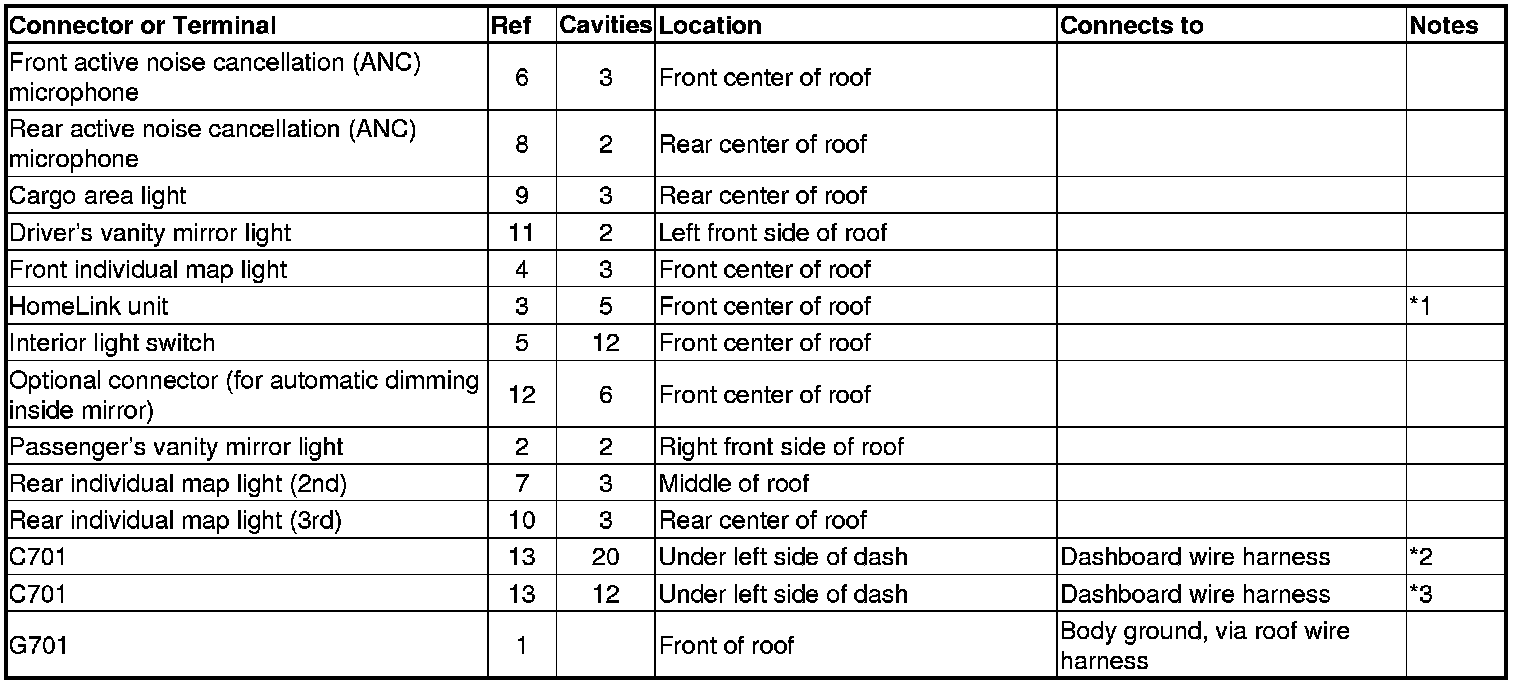

Connector and Harness Locations
Roof Wire Harness (With moonroof)
Roof Wire Harness (Without moonroof)
