Diesel Data
: Automotive Repair
Home
>>
Honda Truck
>>
2010
>>
Pilot 4WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

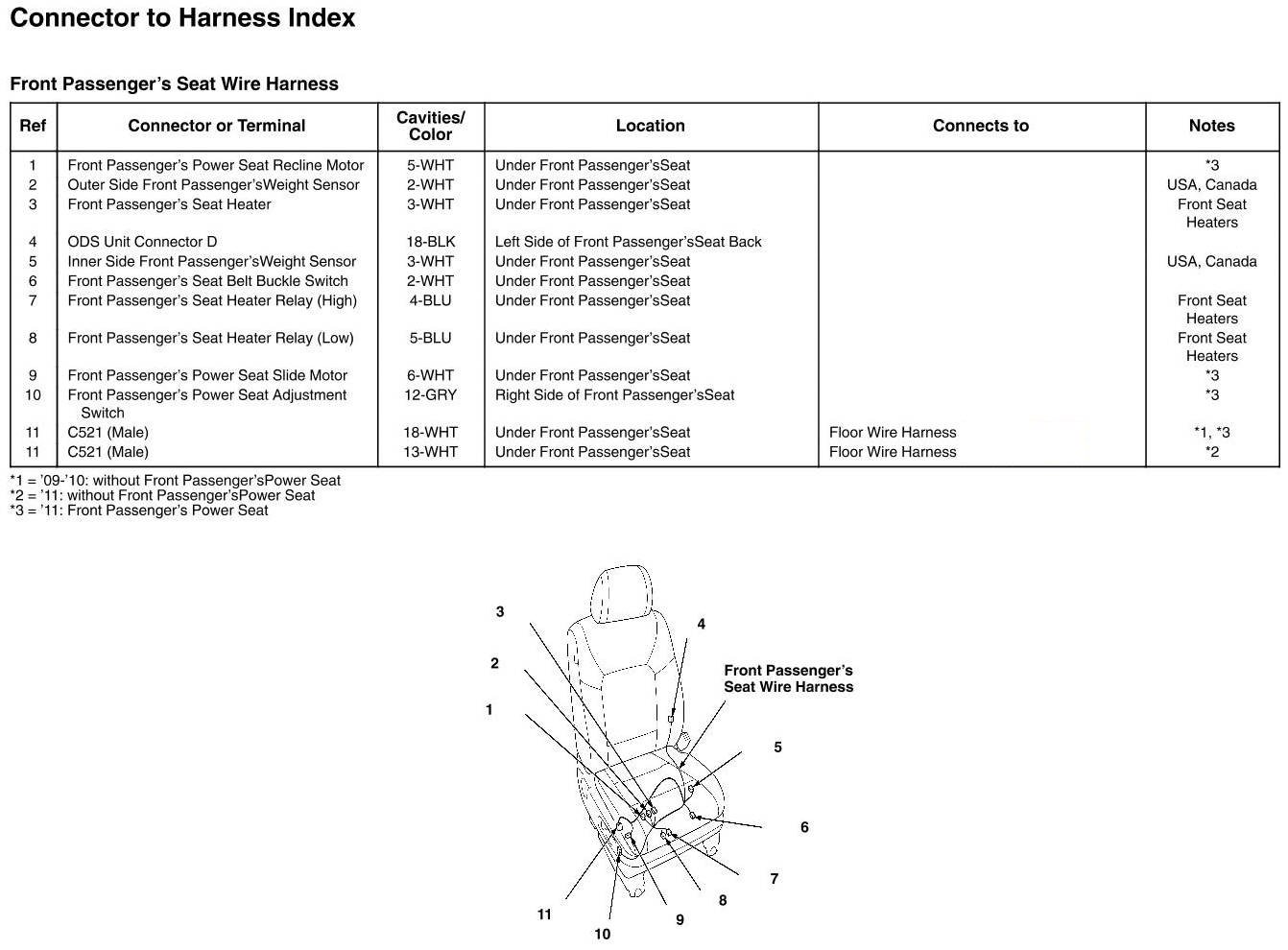

Front Passenger's Seat Wire Harness Connector And Harness Locations
Front Passenger's Seat Wire Harness Connector And Harness Locations
