Removal and Replacement

Drive Belt Auto-Tensioner Replacement

1. Remove the drive belt Service and Repair.

2. Remove the splash shield Splash Shield Replacement.

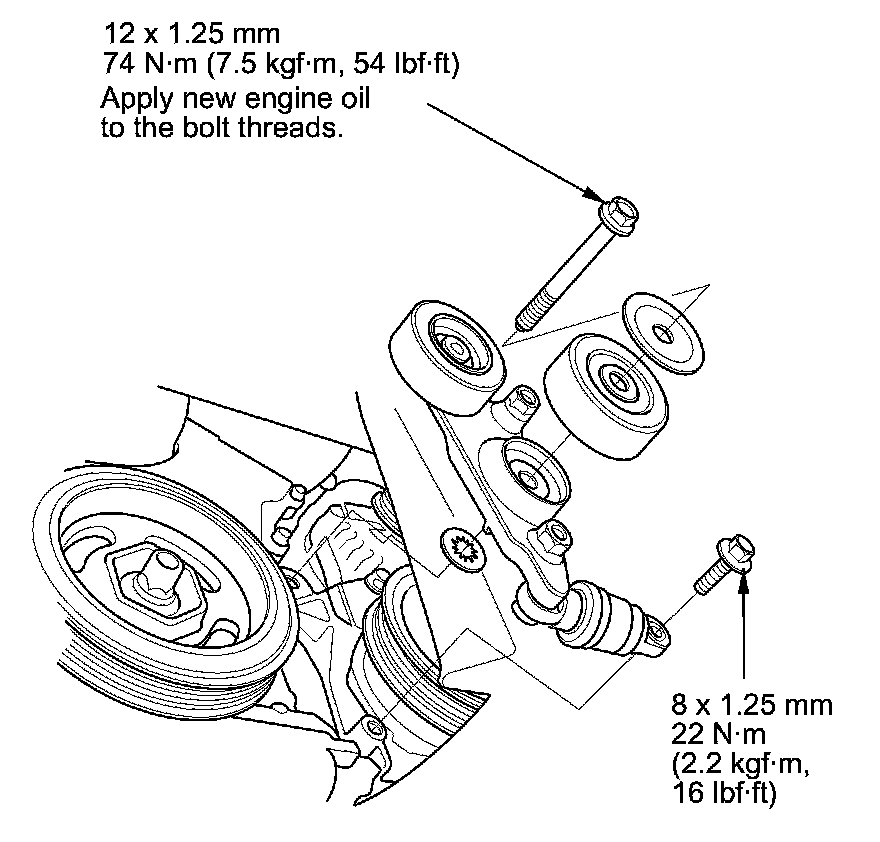

3. Remove the auto-tensioner.






4. Remove the any oil and clean the bolt (A) and the washer (B). Using new engine oil, lubricate the areas shown.






5. Install the auto-tensioner in the reverse order of removal.

6. Do the auto-tensioner air bleeding Procedures.
