Warm Up TWC Removal/Installation

Warm Up TWC Removal/Installation

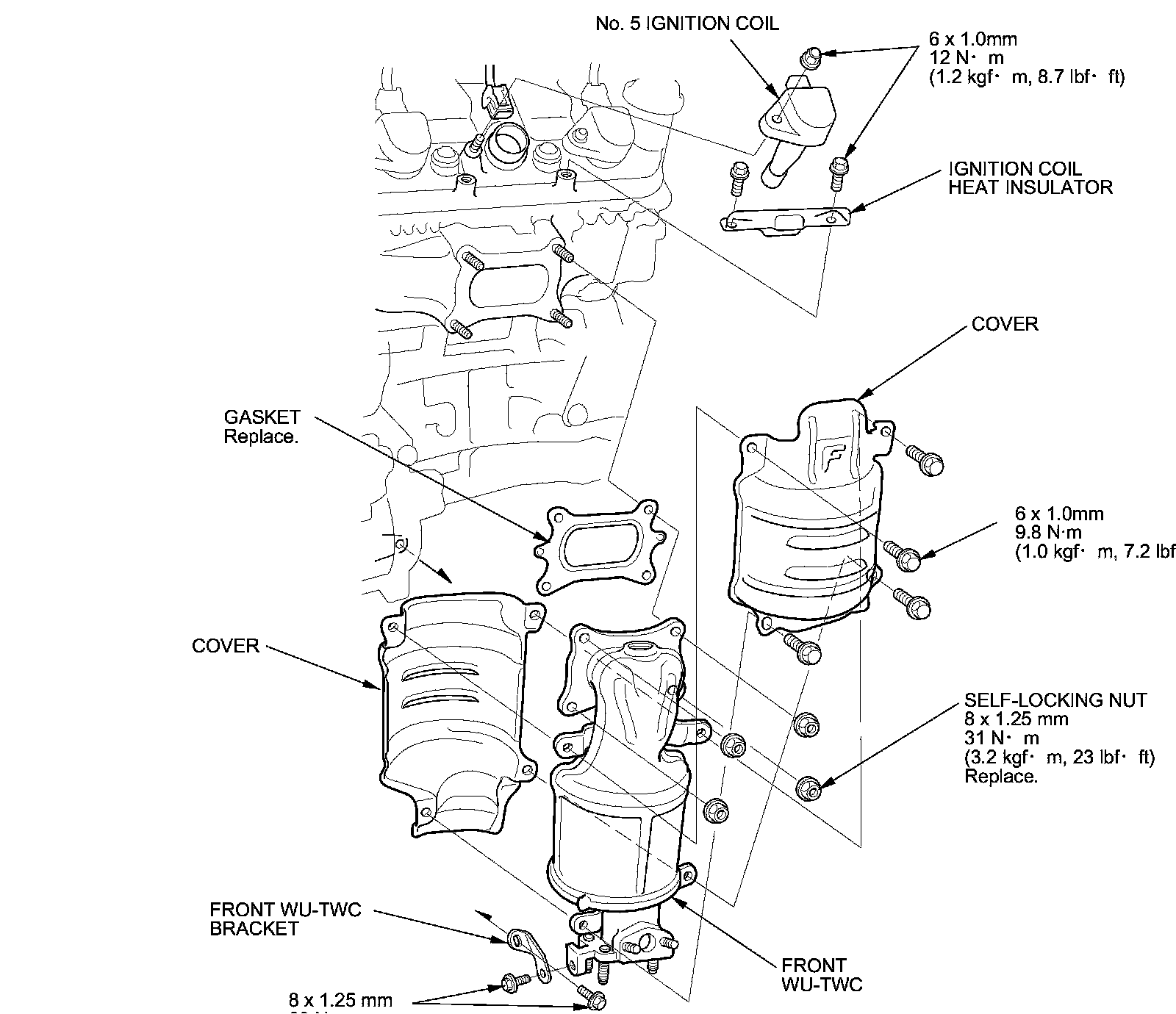

FRONT WU-TWC (Bank 2)

1. Remove the engine cover.

2. Remove the No. 5 ignition coil and the ignition coil heat insulator.

3. Remove the front A/F sensor (Sensor 1) and front secondary HO2S (Sensor 2).

4. Remove the exhaust pipe A mounting nuts (front WU-TWC side) Service and Repair.

5. Remove the EGR pipe Service and Repair.

6. Remove the A/C condenser fan assembly Service and Repair.

NOTE: Place an appropriate size piece of cardboard in front of the radiator. The cardboard protects the radiator from damage when removing the warm up TWC.

7. Remove the front WU-TWC bracket, and carefully remove the front WU-TWC.






8. Carefully install the front WU-TWC with a new gasket and new self-locking nuts. Tighten the nuts in a crisscross pattern in two or three steps.

9. Install the parts in the reverse order of removal.

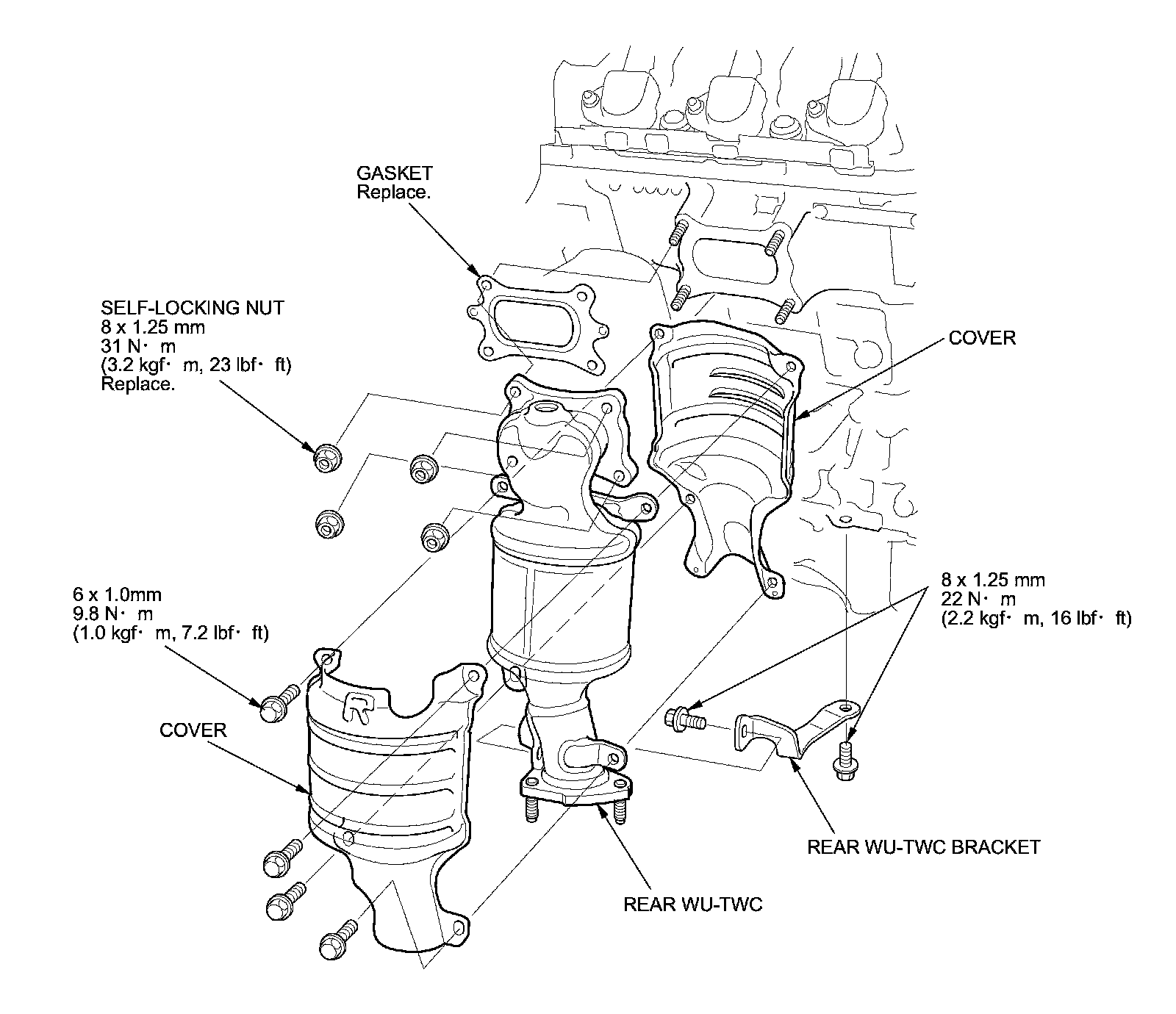

REAR WU-TWC (Bank 1)

1. Remove the rear A/F sensor (Sensor 1) and rear secondary HO2S (Sensor 2).

2. Remove exhaust pipe A Service and Repair, then remove the rear WU-TWC bracket.

3. Remove the intermediate shaft Intermediate Shaft Removal.

4. Carefully remove the rear WU-TWC.






5. Carefully install the rear WU-TWC with a new gasket and new self-locking nuts. Tighten the nuts in a crisscross pattern in two or three steps.

6. Install the parts in the reverse order of removal.
