Rear A/C System Component Location Index
Rear A/C System Component Location Index
Rear A/C System Component Location Index

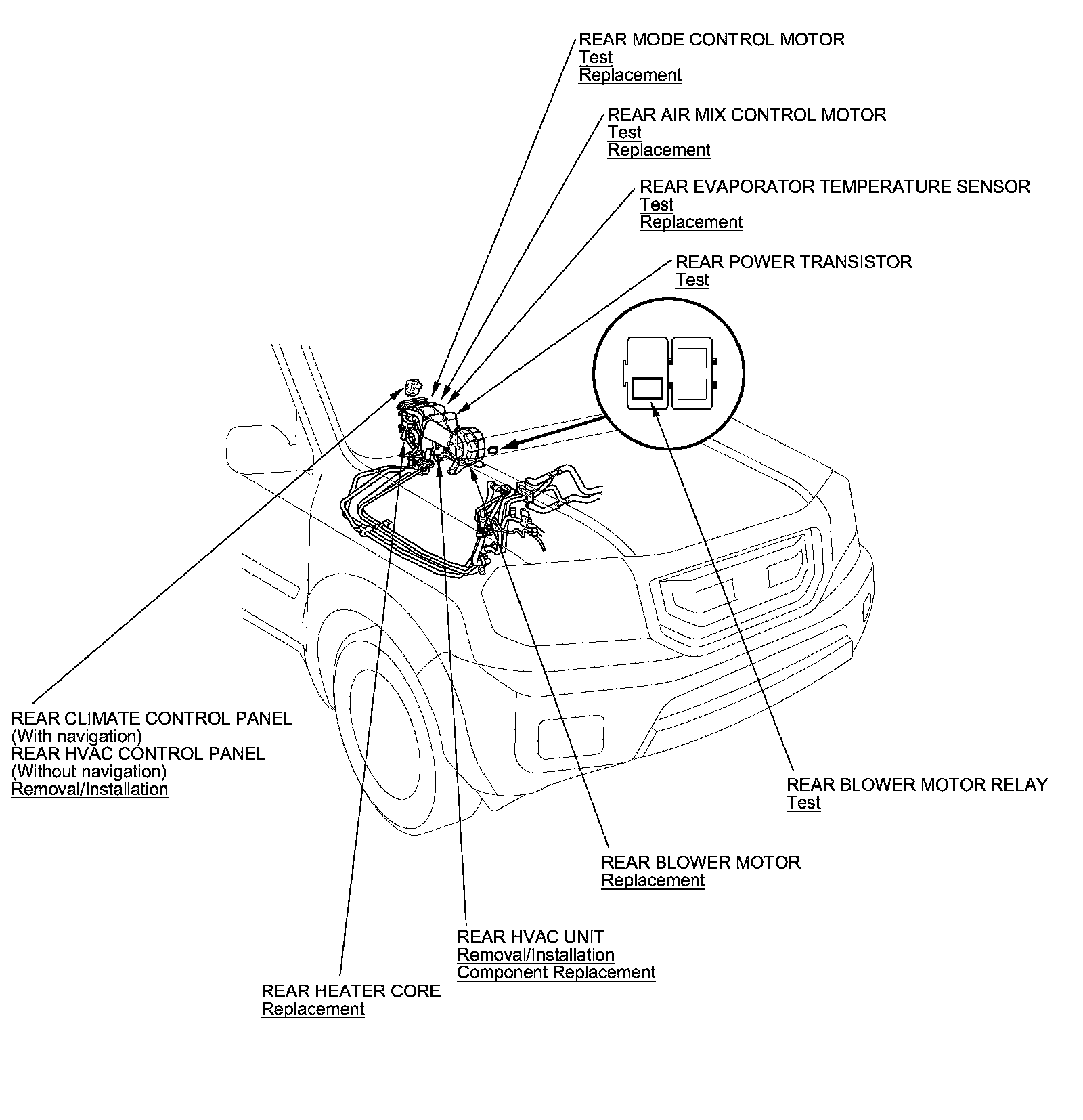

'09-10 models

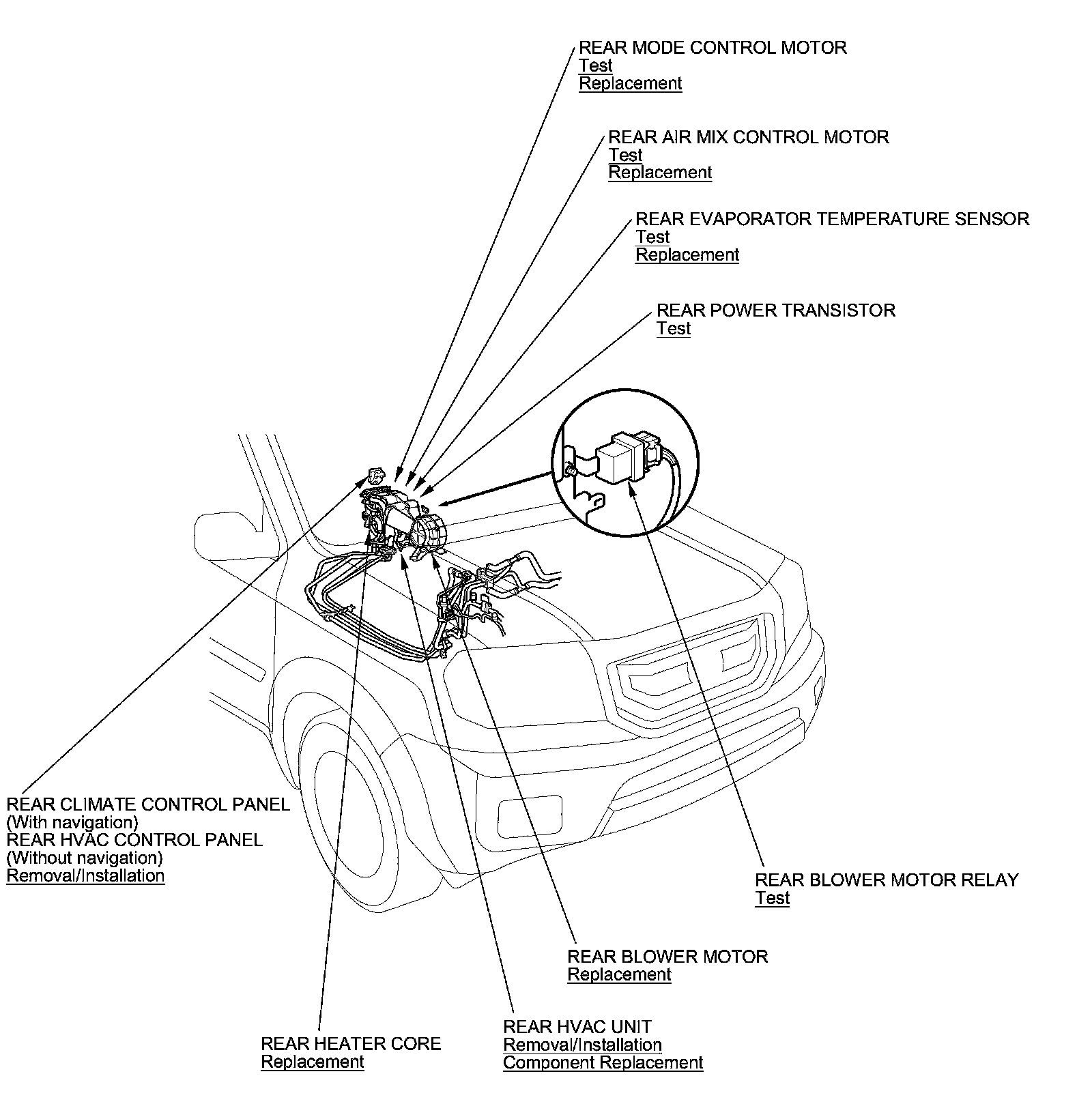

'11 model
