Fog Light Replacement

Fog Light Replacement

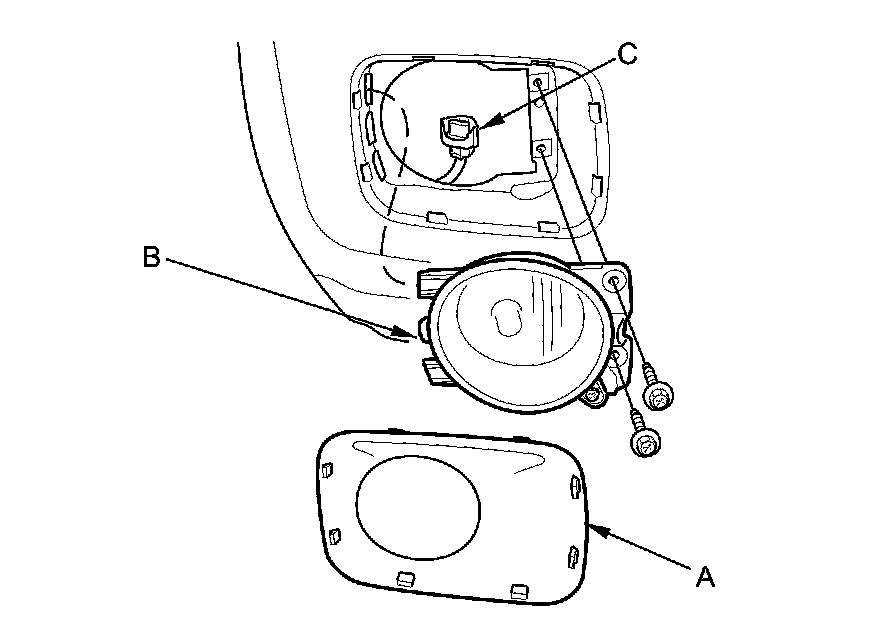

1. Remove the front fog light cover (A).





2. Remove the two mounting screws from the fog light, then remove the fog light (B) from the bumper.

3. Disconnect the 2P connectors (C) from the fog light.

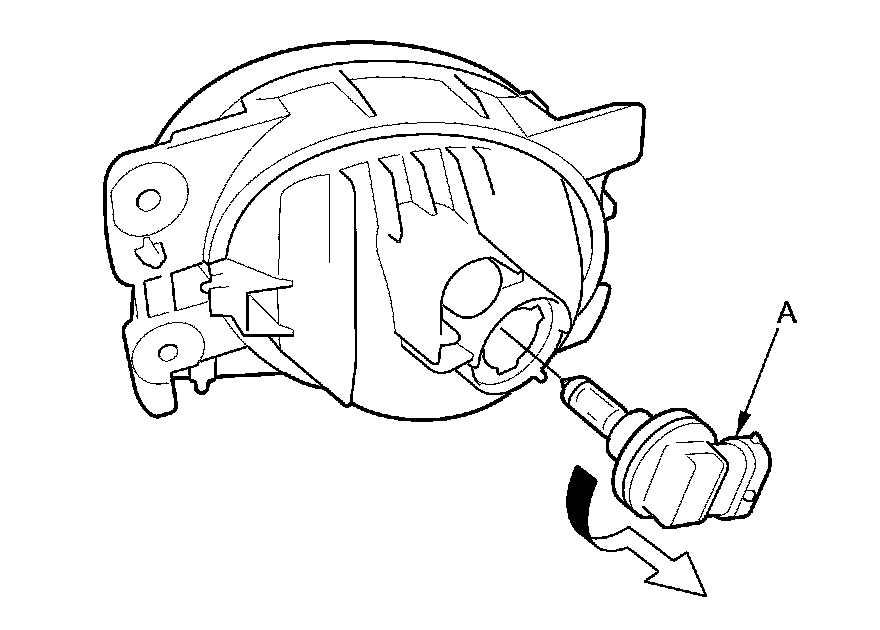

4. Turn the bulb socket (A) 60° counterclockwise to remove it from the housing.









5. Install the fog light in the reverse order of removal.

6. After replacement, adjust the fog lights to local requirements.
