Lighting and Horns: Service and Repair

Exterior Lights Bulb Replacement

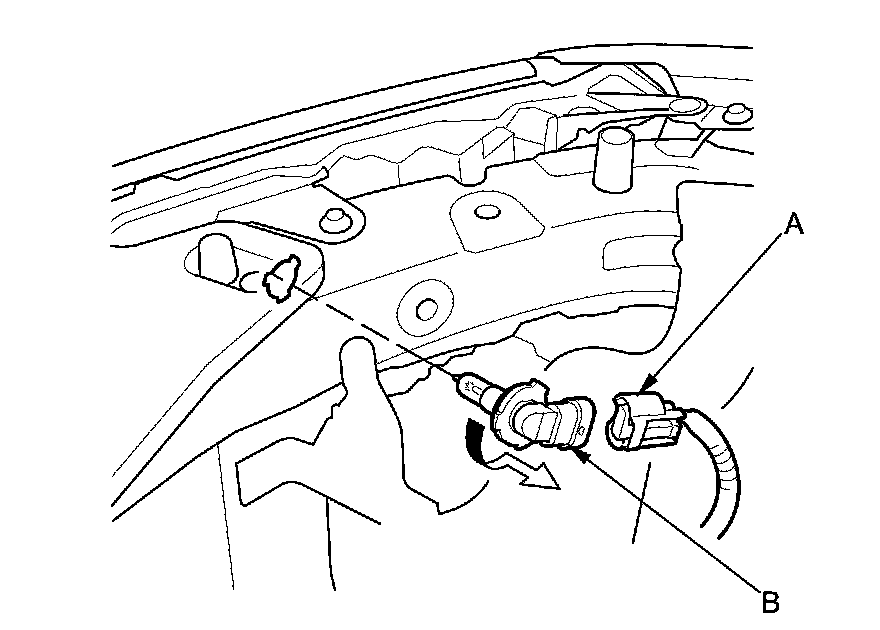

Headlight (Low Beam)

NOTE: Do not touch the glass of the bulb with your hands. If necessary, clean the glass area with isopropyl alcohol.

1. Disconnect the 2P connector (A) from the headlight bulb socket (B).









2. Turn the bulb socket (B) 45° counterclockwise to remove it from the headlight housing.

3. Install a new bulb in the reverse order of removal.

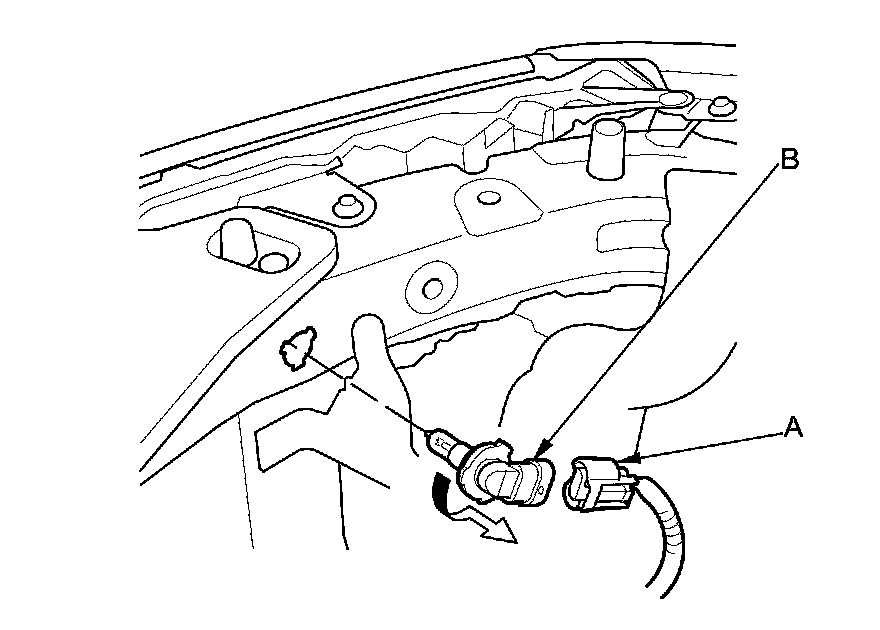

Headlight (High Beam)

NOTE: Do not touch the glass of the bulb with your hands. If necessary, clean the glass area with isopropyl alcohol.

1. Disconnect the 2P connector (A) from the headlight bulb socket (B).









2. Turn the bulb socket (B) 45° counterclockwise to remove it from the headlight housing.

3. Install a new bulb in the reverse order of removal.

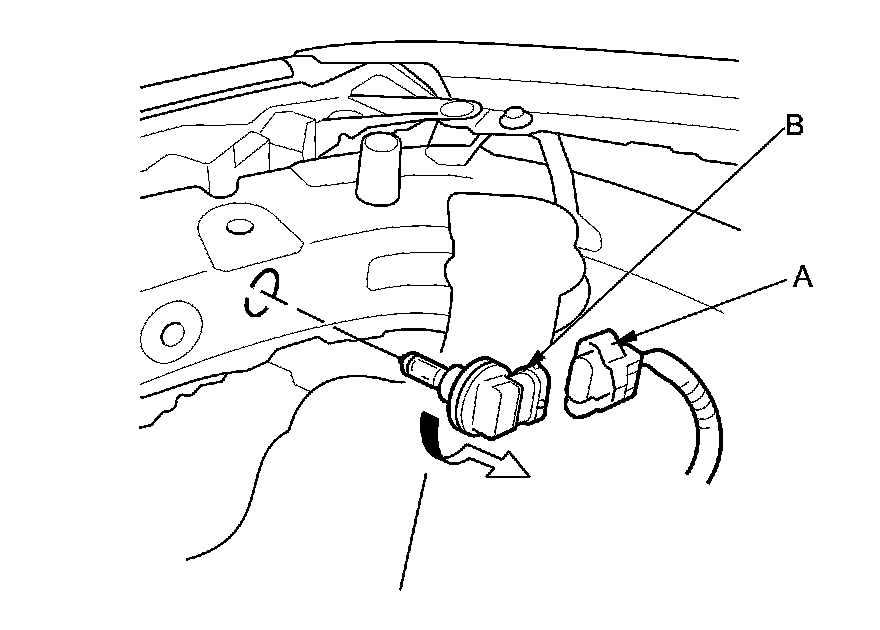

Daytime Running Light (DRL)

NOTE: Do not touch the glass of the bulb with your hands. If necessary, clean the glass area with isopropyl alcohol.

1. Disconnect the 2P connector (A) from the headlight bulb socket (B).

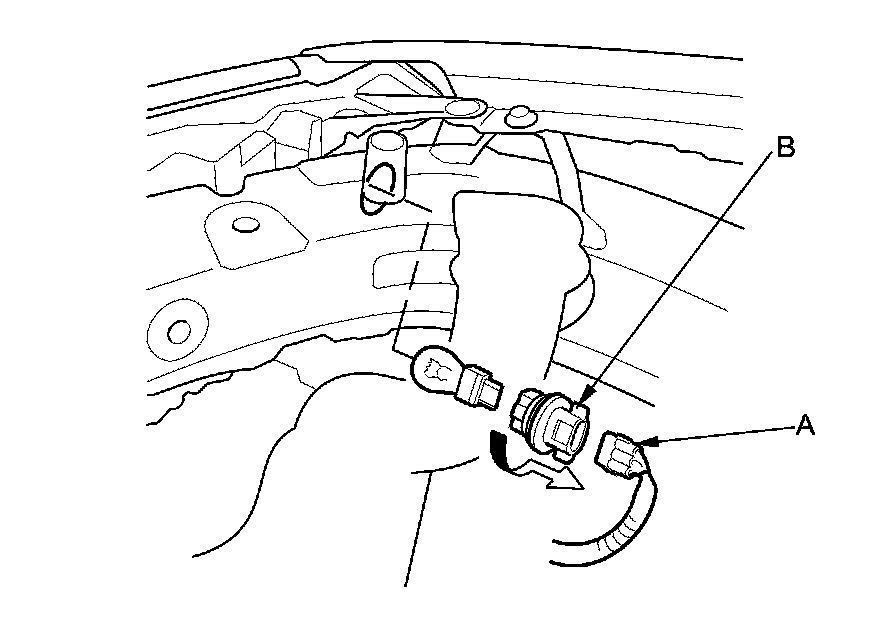

Front Turn Signal Light/Front Parking Light

1. Disconnect the 3P connector (A) from the bulb socket (B).

2. Turn the bulb socket 45° counterclockwise to remove it from the headlight housing.









3. Install a new bulb in the reverse order of removal.

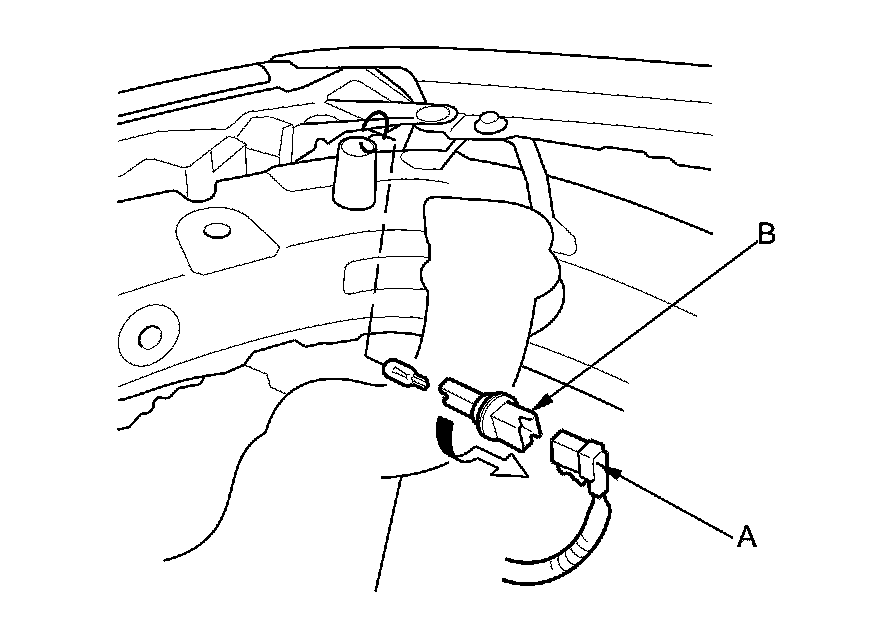

Front Side Marker Light

1. Disconnect the 2P connector (A) from the front side marker light bulb socket (B).









2. Turn the bulb socket (B) 45° counterclockwise to remove it from the headlight housing.

3. Install a new bulb in the reverse order of removal.
