Hazard Warning Switch Test/Replacement

Hazard Warning Switch Test/Replacement

1. Remove the left center panel Dashboard Center Panel Removal/Installation.

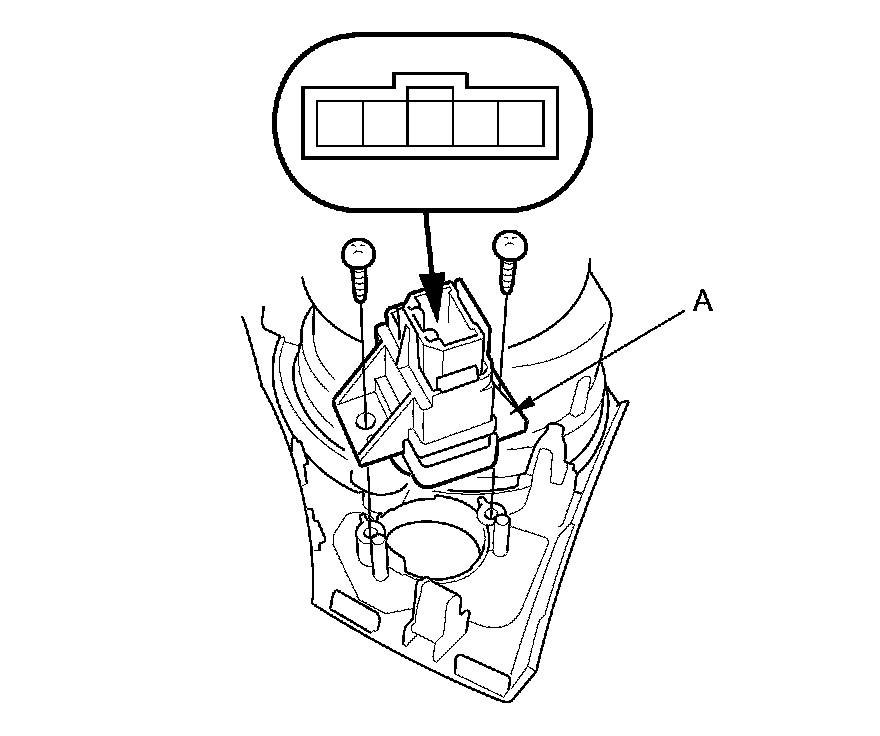

2. Disconnect the 5P connector from the hazard warning switch (A).






3. Remove the two mounting screws, and then remove the hazard warning switch from behind the panel.

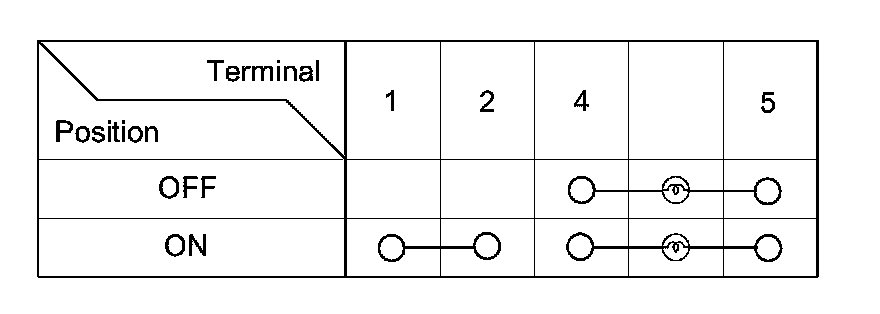

4. Check for continuity between the terminals in each switch position according to the table.

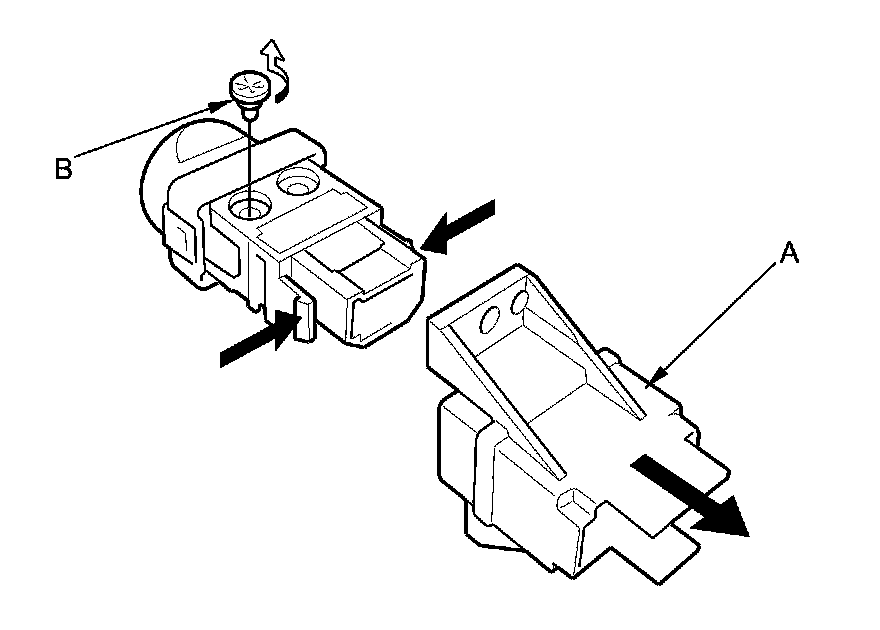

5. Remove the cover (A), and then remove the bulb (B).
