Interior Light Switch Test/Replacement

Interior Light Switch Test/Replacement

1. Remove the front individual map light Front Individual Map Light Test/Replacement.

2. Disconnect the interior light switch 12P connector (A) and the map light 3P connector (B).

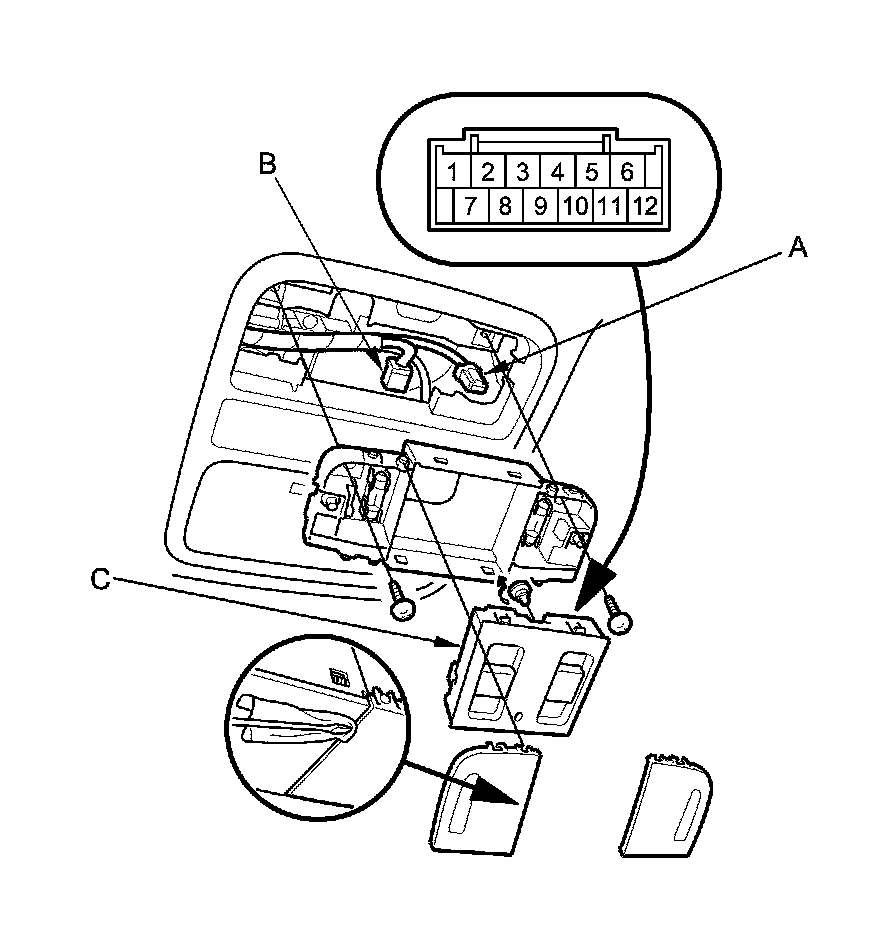

With moonroof

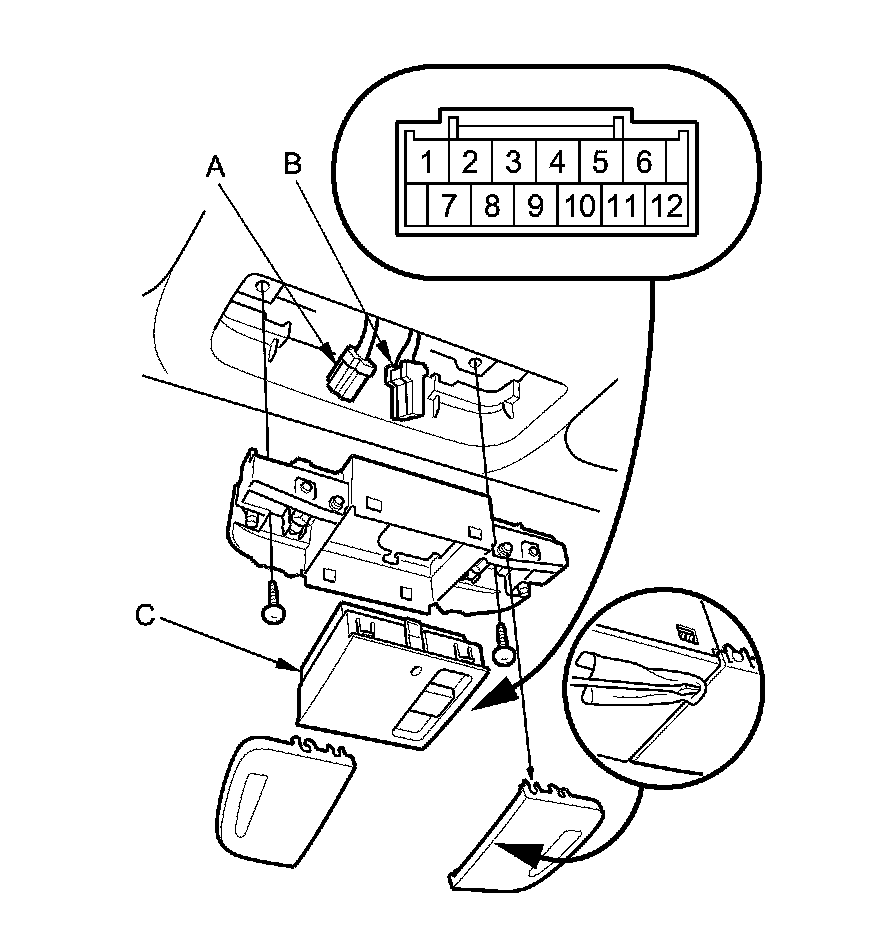

Without moonroof





3. Remove the interior light switch (C) from the map light housing.

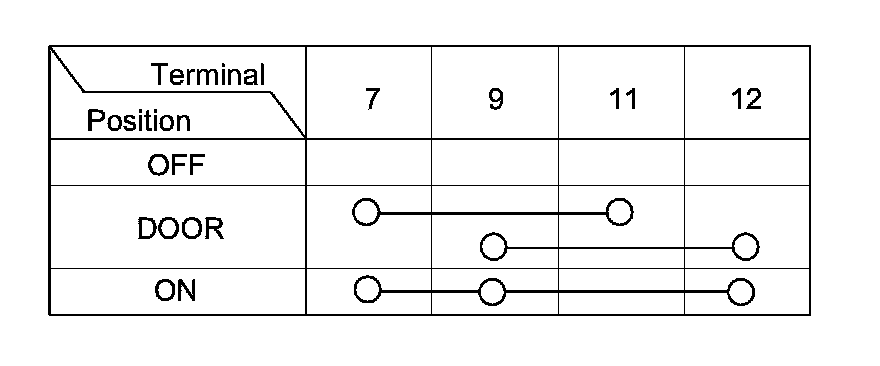

4. At the interior light switch 12P connector, check for continuity between the terminals in each interior light switch position according to the table.






5. If the continuity is not as specified, replace the interior light switch assembly.

6. Install the light in the reverse order of removal.
