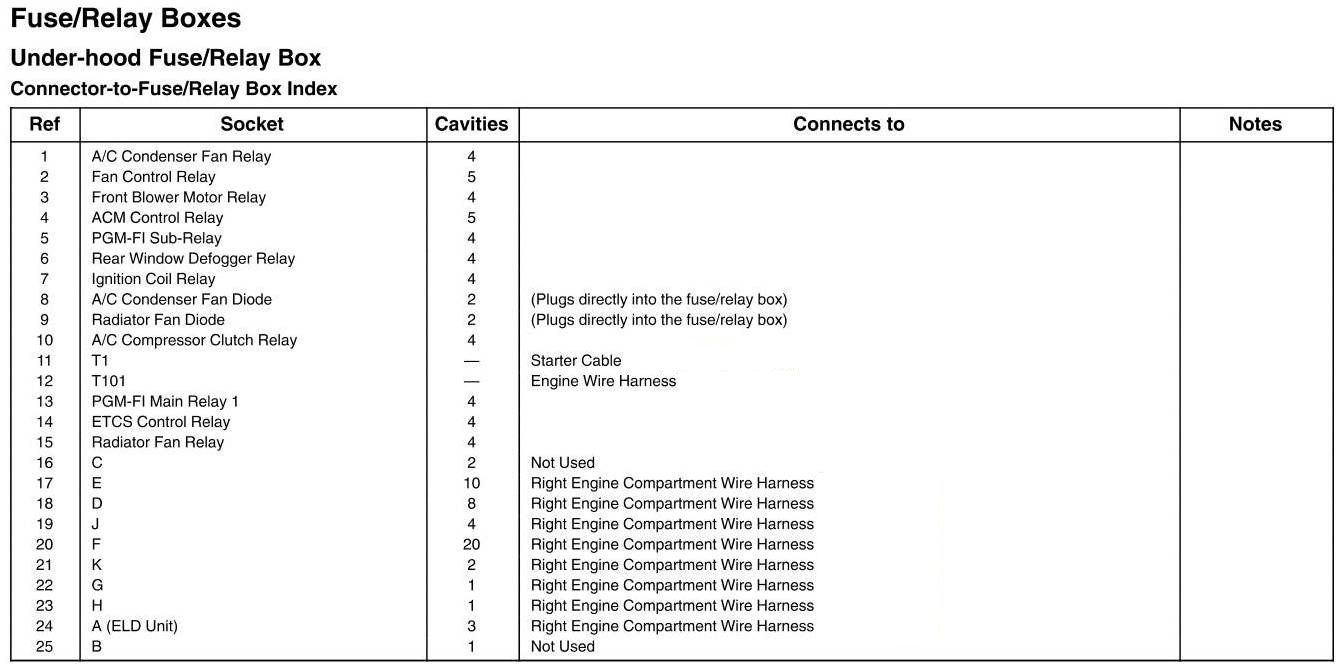

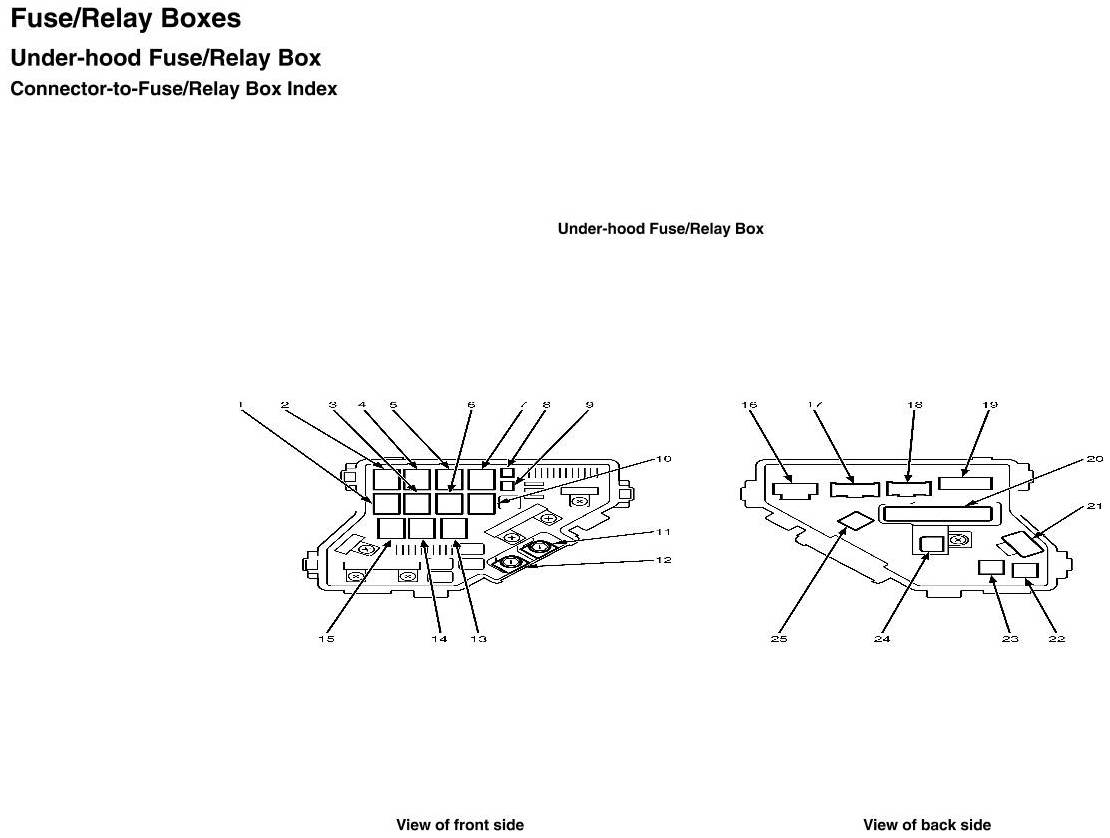

Under-Hood Fuse/Relay Box - Connector-To-Fuse/Relay Box Index
Under-Hood Fuse/Relay Box - Connector-To-Fuse/Relay Box Index
