Home >> Honda Truck >> 2010 >> Pilot 4WD V6-3.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> PCM Inputs And Outputs At Connector C

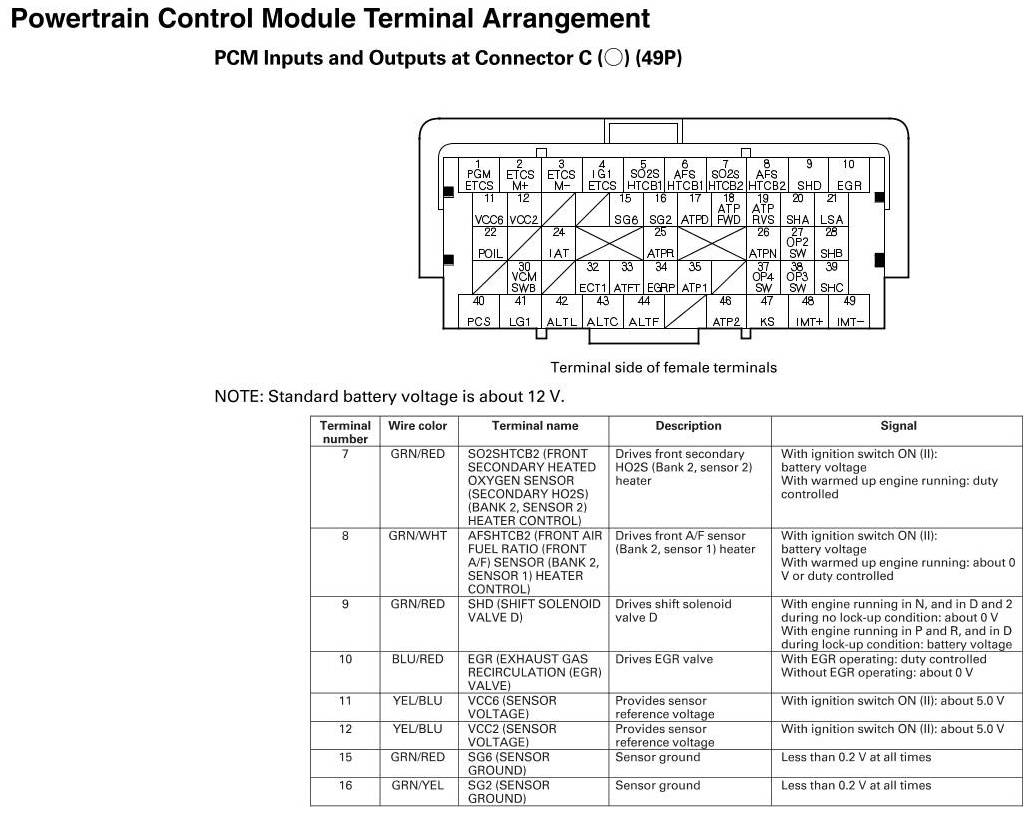

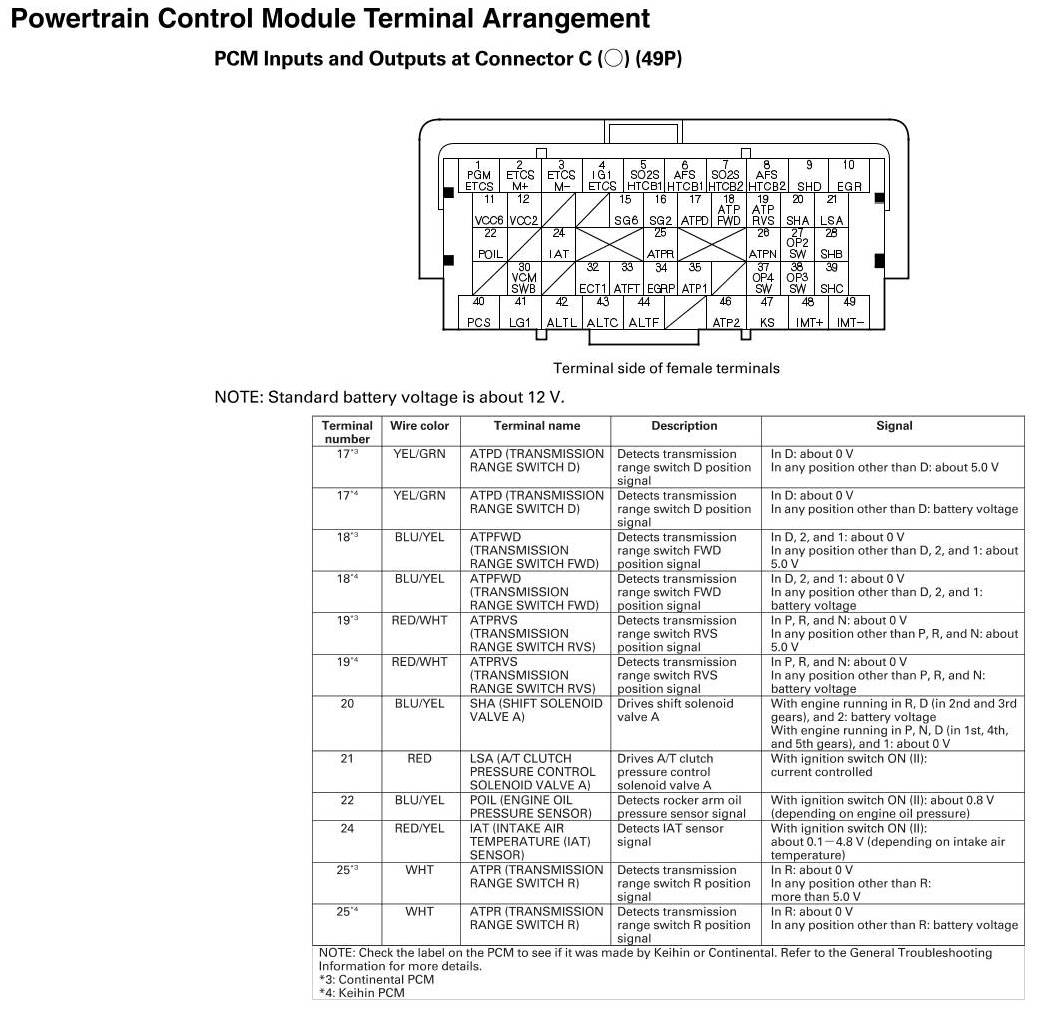

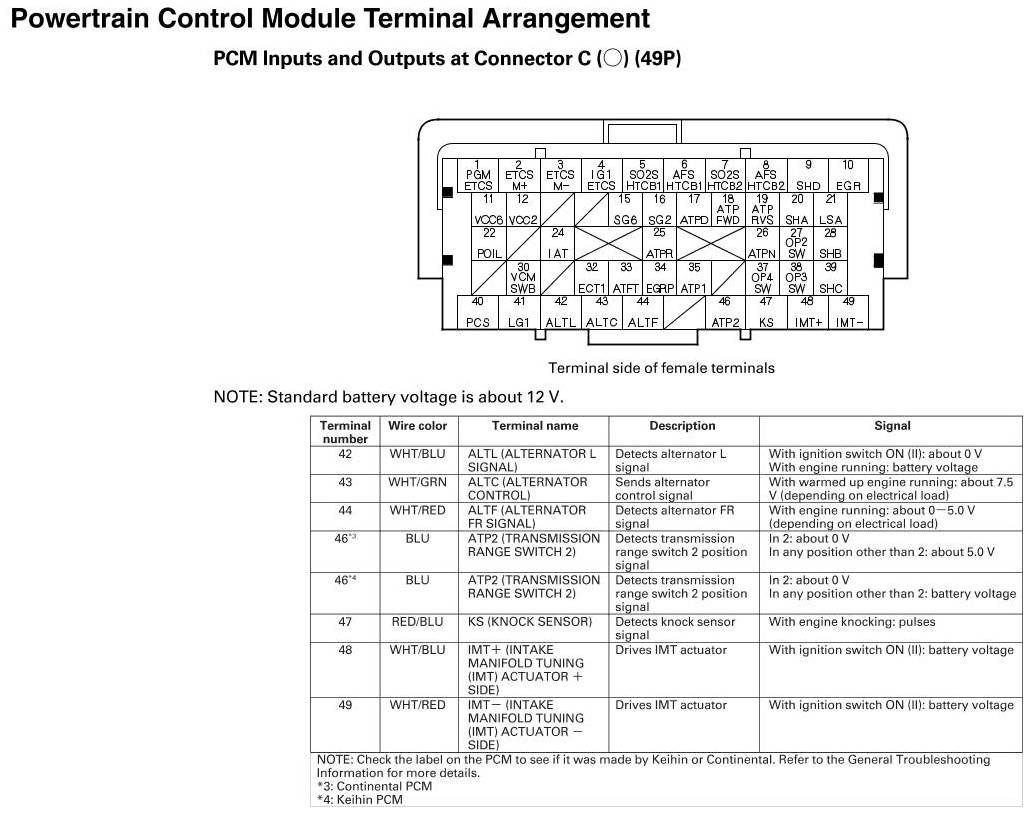

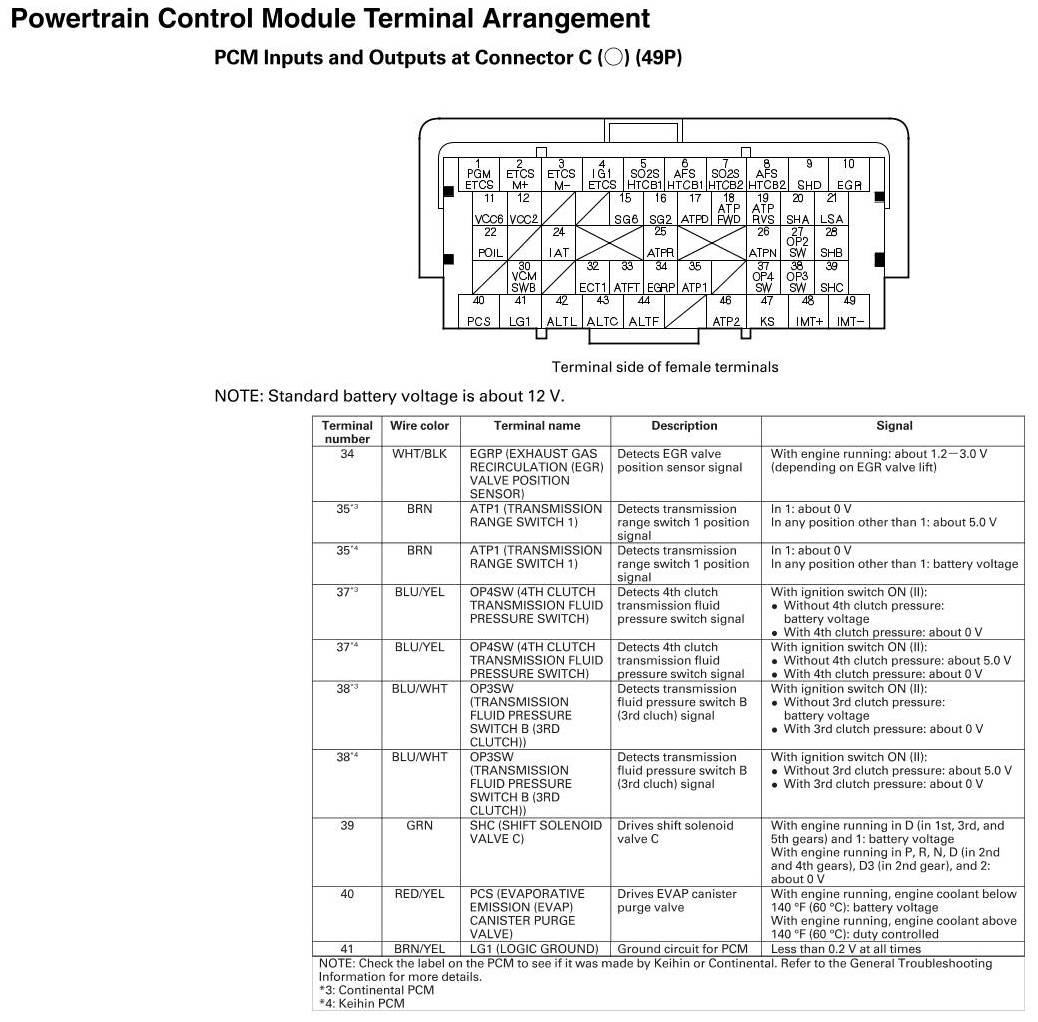

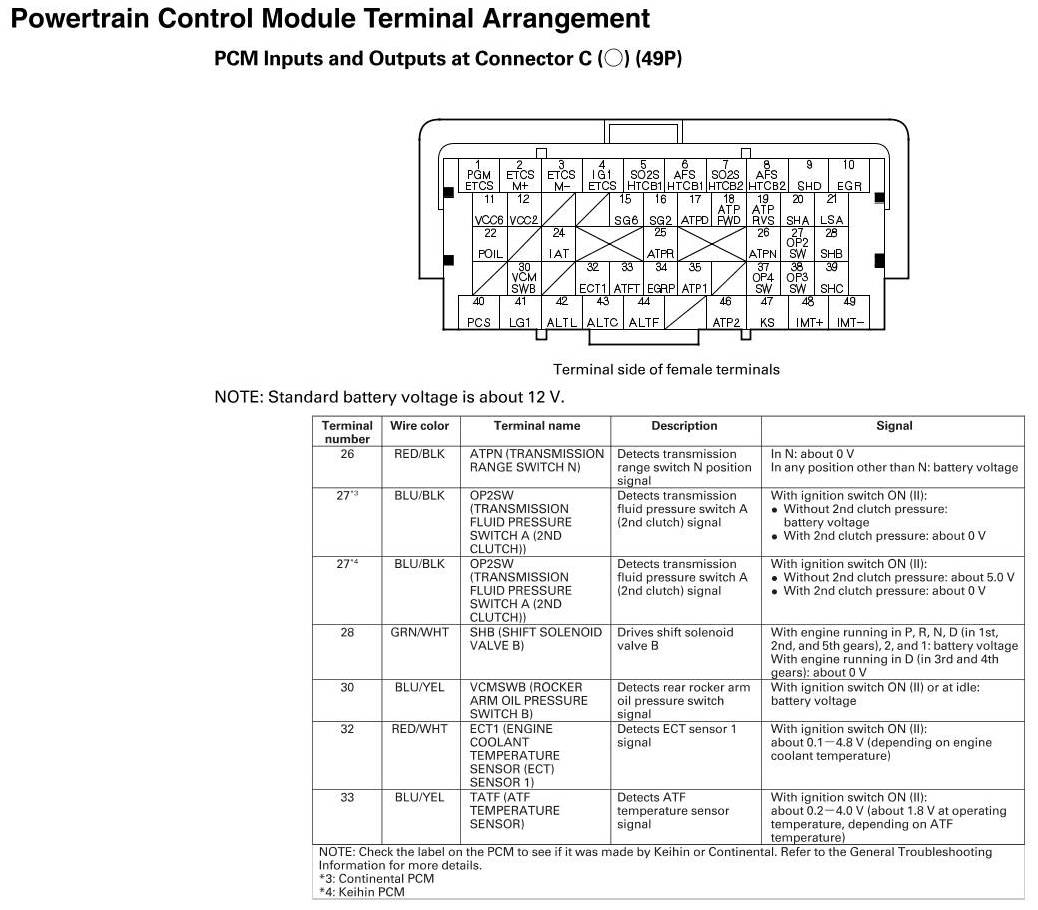

PCM Inputs And Outputs At Connector C
