Variable Valve Timing Actuator Position Sensor: Service and Repair

Rocker Arm Oil Pressure Sensor Replacement

1. Remove the rocker arm oil pressure sensor cover.






2. Disconnect the rocker arm oil pressure sensor connector, then remove the rocker arm oil pressure sensor.





3. Apply liquid gasket (P/N 08717-0004, 08718-0003, 08718-0004, or 08718-0009) to the rocker arm oil pressure sensor threads. Install the component within 5 minutes of applying the liquid gasket.

NOTE:

- Using too much liquid gasket may cause liquid gasket to enter the oil passage or the end of the rocker arm oil pressure sensor.
- If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply the new liquid gasket.

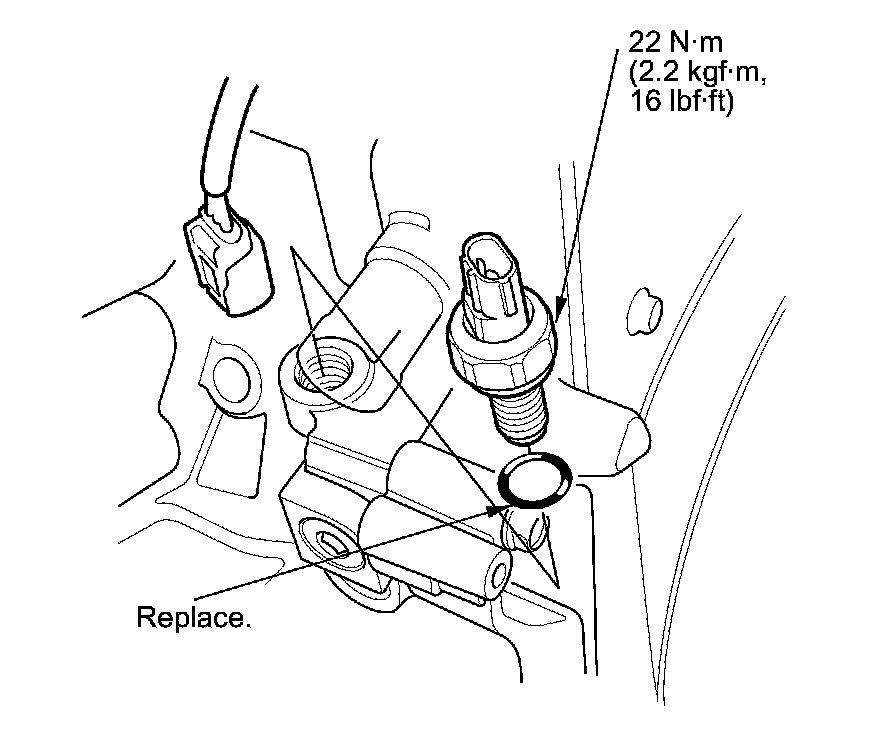

4. Install the rocker arm oil pressure sensor with a new O-ring.

5. Connect the rocker arm oil pressure sensor connector.

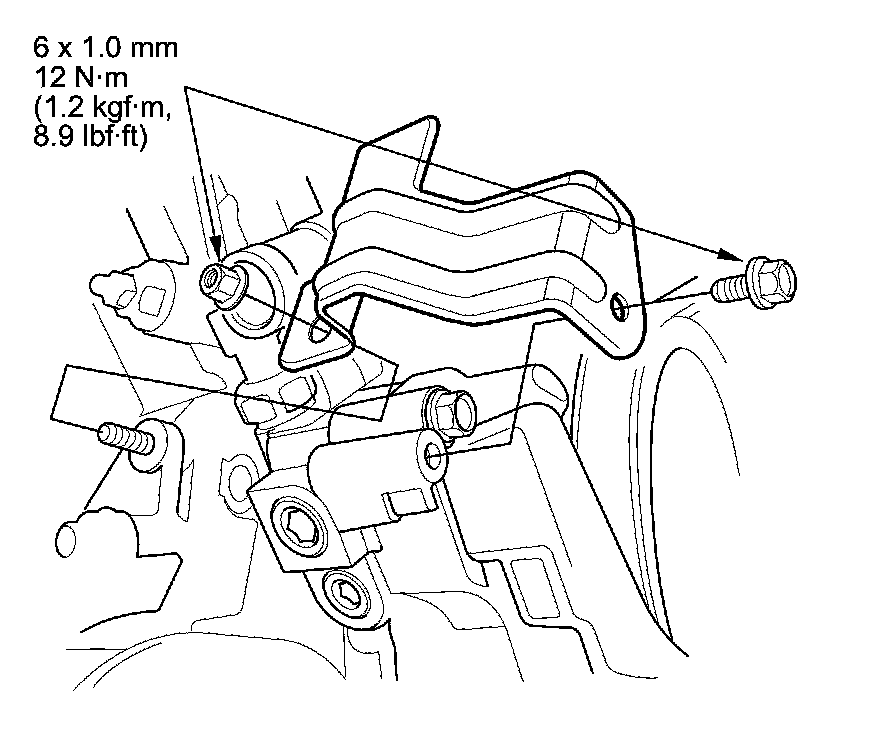

6. Install the rocker arm oil pressure sensor cover.
