Steering Column Blind Cover Removal/Installation

Steering Column Blind Cover Removal/Installation

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the column covers.
- Do not pry the cover surface with any tools.

1. Remove the column cover Steering Column Cover Removal/Installation.

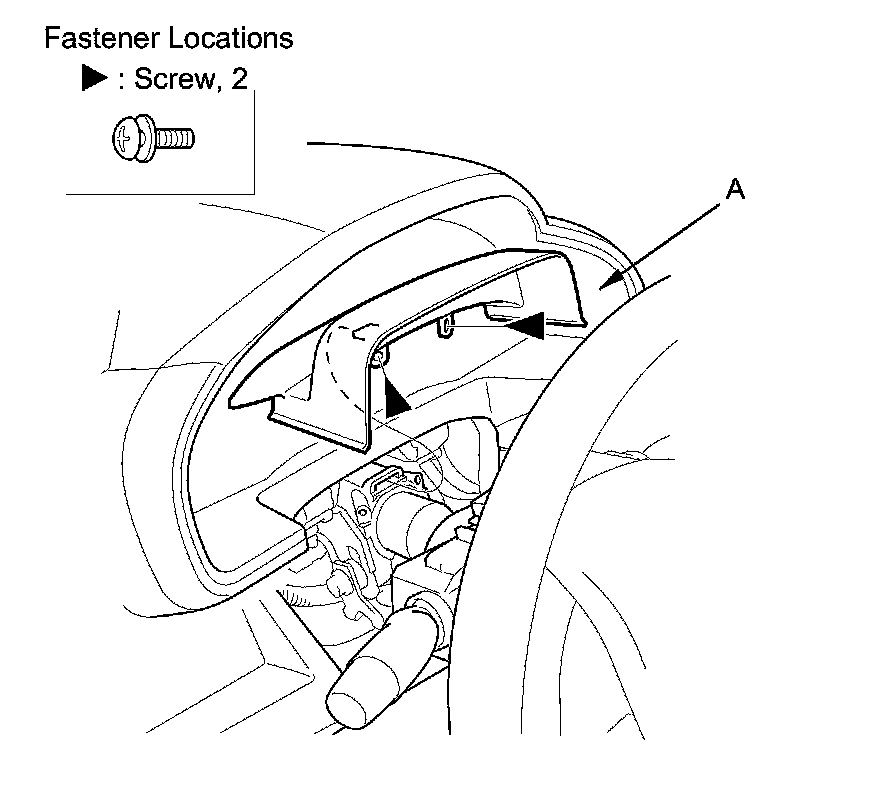

2. Remove the screws, then remove the blind column cover (A).






3. Install the column blind cover in the reverse order of removal, and make sure the wire harness are not pinched before tightening the screws.
