A/T Housing Selector Control Shaft Bearing Replacement

A/T Housing Selector Control Shaft Bearing Replacement

Special Tools Required

- Attachment, 22 x 24 mm 07746-001A800
- Driver Handle, 15 x 135L 07749-0010000
- Bearing Remover, 10 mm 07936-GE0A000
- Slide Hammer 07936-371020A

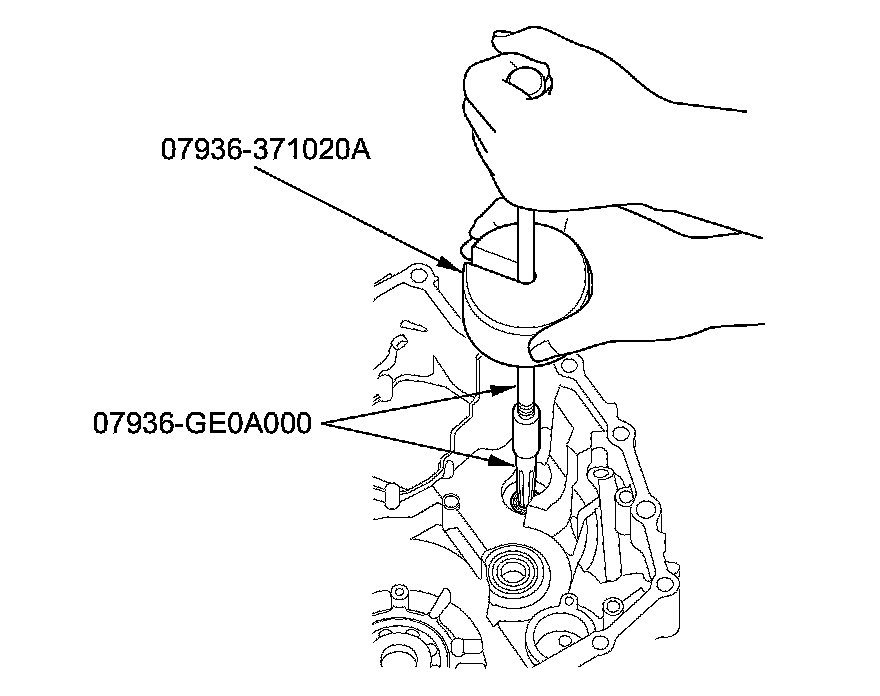

1. Remove the control shaft bearing from the transmission housing using the 10 mm bearing remover, and the slide hammer.

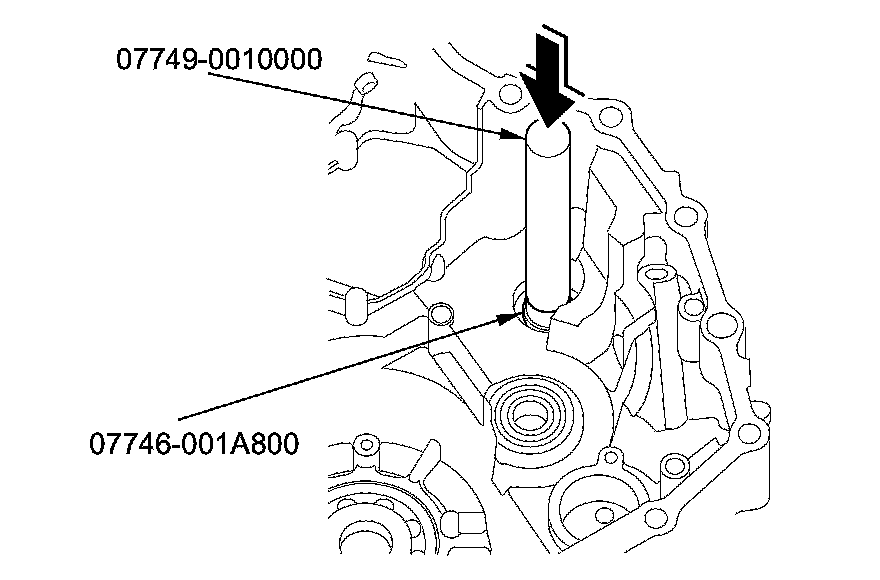

2. Install a new bearing in the transmission housing using the driver handle and the 22 x 24 mm attachment.
