A/T Housing Selector Control Shaft Oil Seal Replacement

A/T Housing Selector Control Shaft Oil Seal Replacement

Special Tools Required

- Attachment, 22 x 24 mm 07746-001A800
- Driver Handle, 15 x 135L 07749-0010000

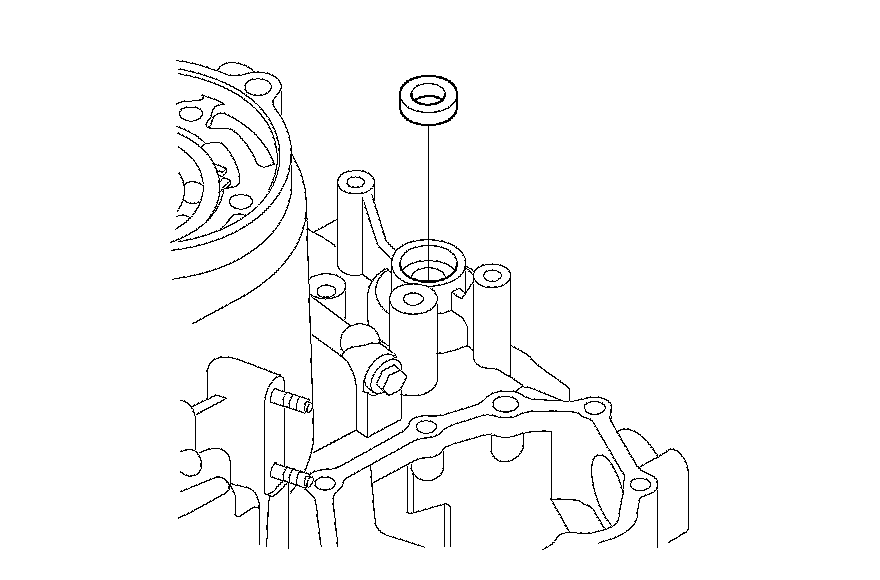

1. Remove the oil seal from the transmission housing.






2. Install a new oil seal in the transmission housing using the driver handle and the 22 x 24 mm attachment.
