Rear Differential Installation (With VTM-4)

Rear Differential Installation

1. Place the rear differential on a transmission jack.

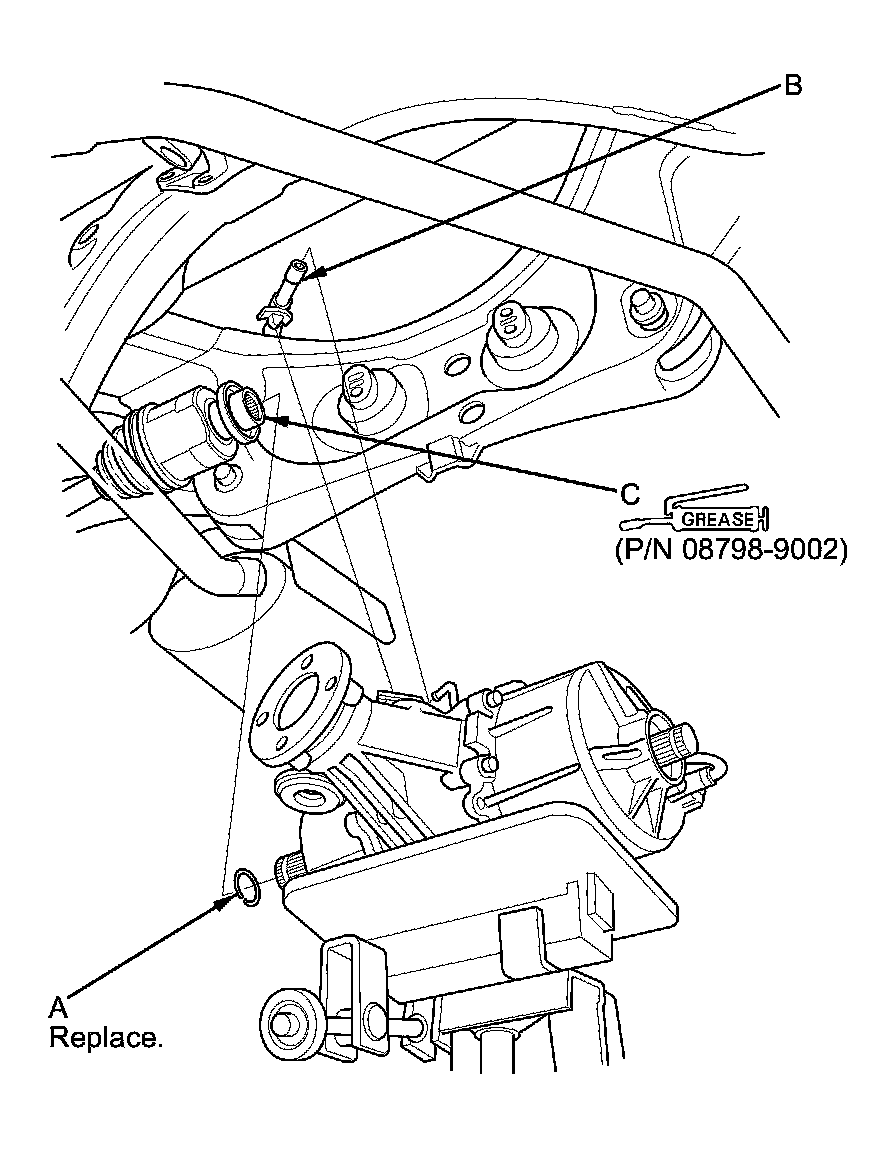

2. Install new set ring (A) into the groove of the rear differential right side.





3. Raise the rear differential a little on the transmission jack, then connect the breather hose (B) to the rear differential.

4. Apply 1.5-2.0 g (0.05-0.07 oz) of super high temp urea grease (P/N 08798-9002) to the splines of the right rear driveshaft inboard joint (C), then install the right rear driveshaft inboard joint to the rear differential.

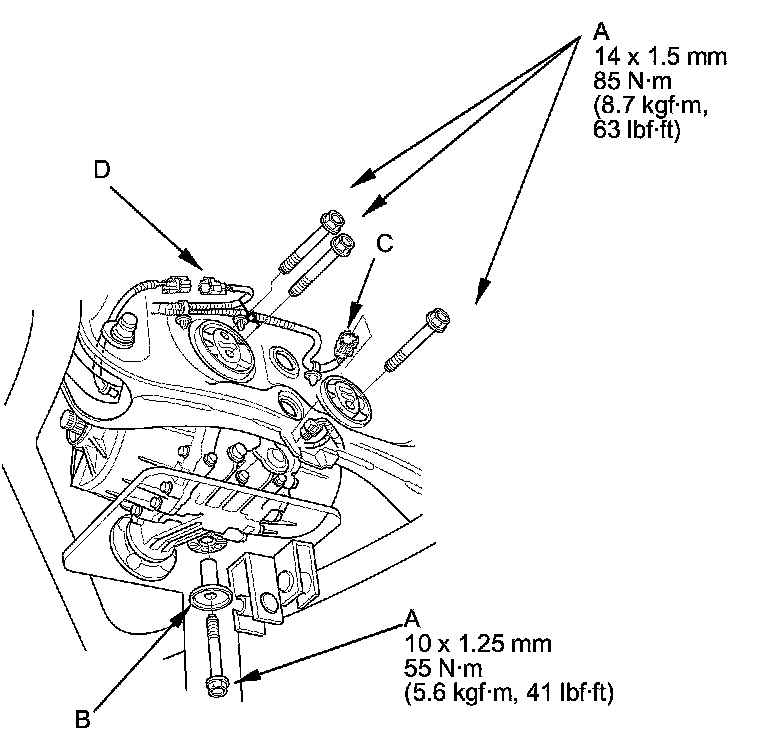

5. Raise the rear differential to the mounting level, then install the mounting bolts (A) and the stopper (B).





6. Connect the 6P connector (C) and the 2P connector (D).

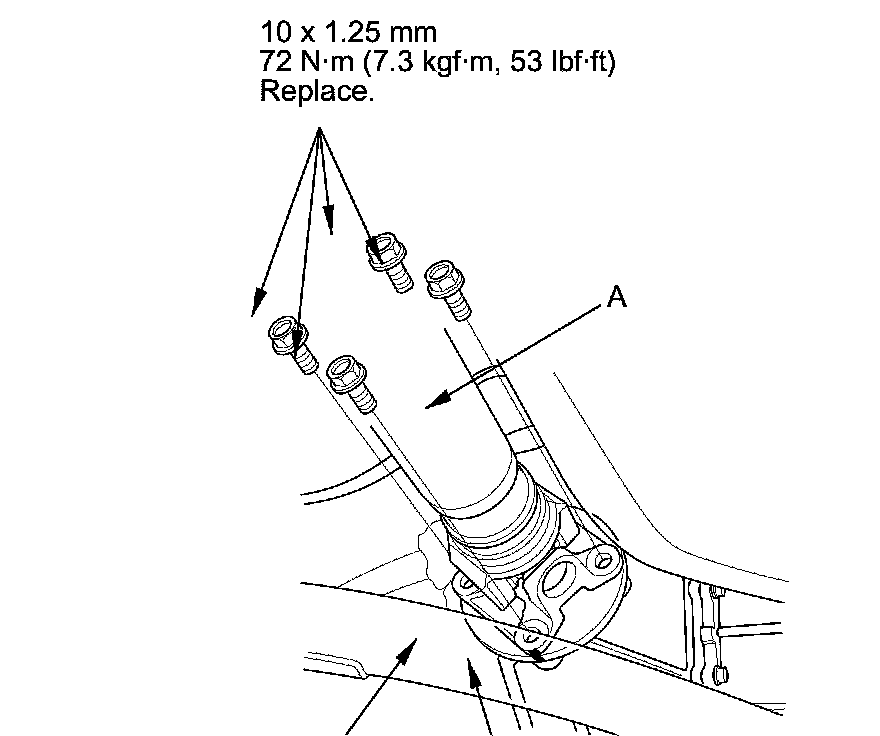

7. Attach the propeller shaft (A) to the rear differential (B) by aligning the reference marks (C) you made during the removal procedure.





8. Install the left rear driveshaft Rear Driveshaft Installation (With VTM-4).

9. Refill the rear differential with the recommended differential fluid Rear Differential Fluid Inspection And Replacement (With VTM-4).

10. Install the rear wheels.

11. Lower the vehicle.

12. Check the wheel alignment, and adjust it if necessary Service and Repair.

13. Test-drive the vehicle.
